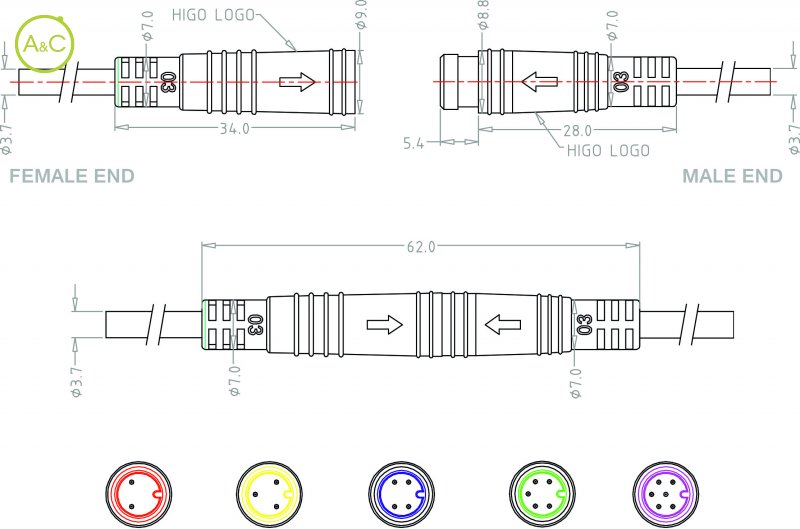

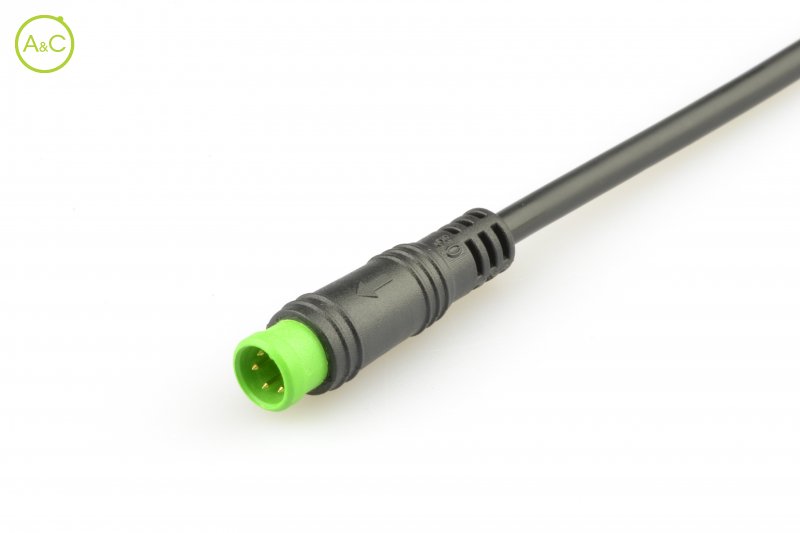

Mini B Male cable connector

Avez-vous des questions sur ce produit?

Télécharger la fiche produit Télécharger le fichier STEP

Plus d’infos sur cette marque:

Article Number	Z209BG P 00 A0 1000	Z209BG P 00 AW 1000
Color	Red	Red
Connector Diameter	9 mm	9 mm
Wire Section	0.2 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	2.4 mm
Insulation Wire	PVC	Teflon
Remark *	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	62 mm	62 mm
Material Jacket	PVC	TPU

Article Number	Z309BG P 00 A1 1000	Z309BG P 00 AX 1000
Color	Yellow	Yellow
Connector Diameter	9 mm	9 mm
Wire Section	0.2 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Remark *	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	62 mm	62 mm
Material Jacket	PVC	TPU

Article Number	Z409BG P 00 A2 1000	Z409BG P 00 AY 1000
Color	Blue	Blue
Connector Diameter	9 mm	9 mm
Wire Section	0.14 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Remark *	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	62 mm	62 mm
Material Jacket	PVC	TPU

Article Number	Z509BG P 00 A3 1000	Z509BG P 00 C8 1000
Color	Green	Green
Connector Diameter	9 mm	9 mm
Wire Section	0.14 mm²	0.2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	4.1 mm
Insulation Wire	PVC	PTFE
Remark *	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	62 mm	62 mm
Material Jacket	PVC	TPU

Article Number	Z609BG P 00 A4 1000	Z609BG P 00 C9 1000
Color	Purple	Purple
Connector Diameter	9 mm	9 mm
Wire Section	0.14 mm²	0.2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	4.1 mm
Insulation Wire	PVC	PTFE
Remark *	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	62 mm	62 mm
Material Jacket	PVC	TPU

Les propriétés diffèrent selon les variantes et sous-variantes
