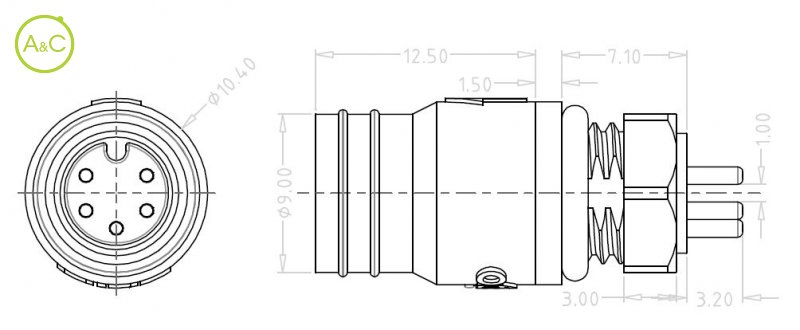

Mini B Female panel mount connector

Solder cup contacts

Z209BMC02000000

Z209BMC02000000

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit Télécharger le fichier STEP

Plus d’infos sur cette marque:

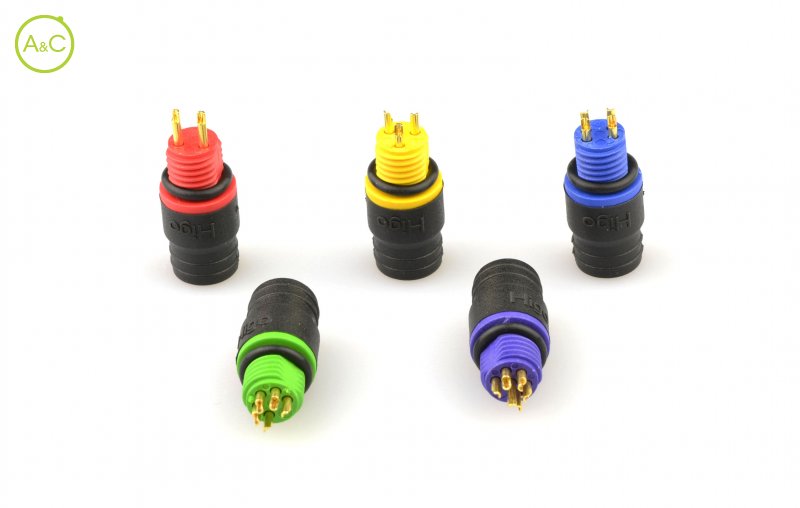

Number Of Poles

2
3
4
5
6

Article Number	Z209BM C 02 00 0000
Color	Red
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z309BM C 02 00 0000
Color	Yellow
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z409BM C 02 00 0000
Color	Blue
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z509BM C 02 00 0000
Color	Green
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z609BM C 02 00 0000
Color	Purple
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Les propriétés diffèrent selon les variantes et sous-variantes
