Number Of Poles

  • 3

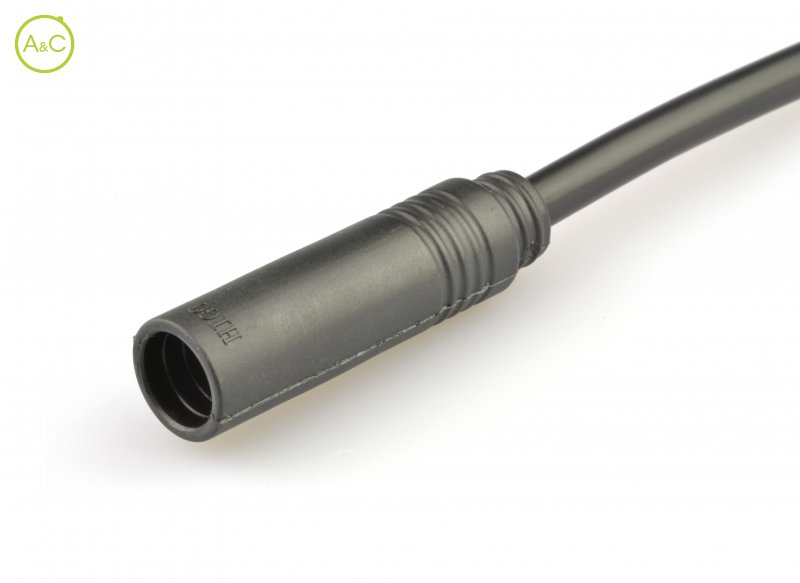

Article Number Z310BM P 00 A9 1000 Z310BM P 00 AA 1000 Z310BM P 00 AB 1000
Color Black Black Black
Connector Diameter 10 / 13 mm 10 / 13 mm 10 / 13 mm
Wire Section 3 x 1,2 mm² 3 x 1,5 mm² 3 x 2,0 mm²
Cable Length 1000 mm 1000 mm 1000 mm
Protection Degree IP66 IP66 IP66
Mating Cycles 200 times 200 times 200 times
Upper Temperature 80 °C 80 °C 80 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ ≤10 mΩ
Material Of Contact Copper Alloy Copper Alloy Copper Alloy
Cable Diameter 5.8 mm 5.8 mm 5.8 mm
Insulation Wire Teflon Teflon Teflon
Remark * Other cable length/type on request Other cable length/type on request Other cable length/type on request
Rated Current 15 A 15 A 15 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel Gold over Nickel
Fitting Length 75 mm 75 mm 75 mm
Material Jacket PVC PVC PVC
Les propriétés diffèrent selon les variantes et sous-variantes
