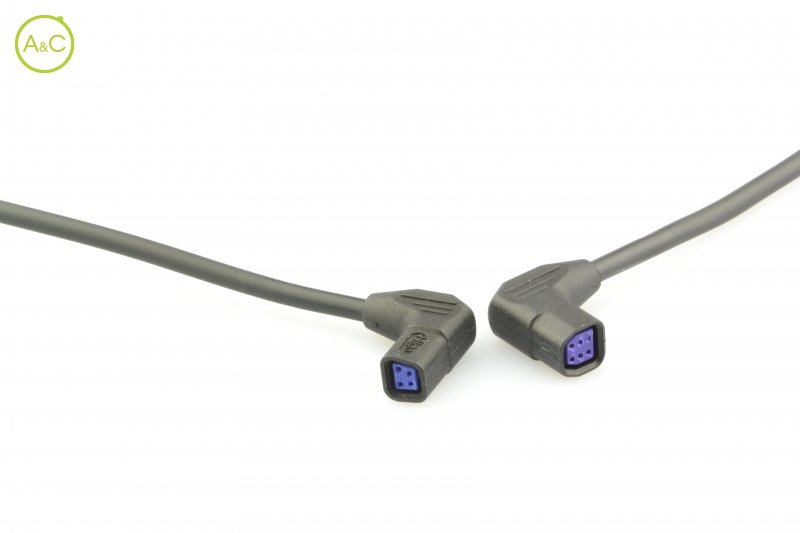

Mini F Female angled plug connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	Z409FM A 00 A2 1000	Z409FM A 00 AY 1000
Color	Blue	Blue

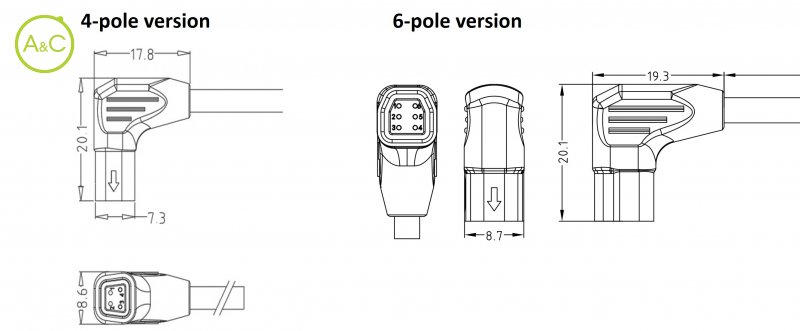

Connector Diameter	8,6 x 7,3 mm	8,6 x 7,3 mm
Wire Section	4 x 0,14 mm²	4 x 0,14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66	IP66
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Remark *	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	20 mm	20 mm
Material Jacket	PVC	TPU

Article Number	Z609FM A 00 A4 1000
Color	Purple
Connector Diameter	8.7 mm
Wire Section	6 x 0,14 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	3.7 mm
Insulation Wire	PVC
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	20 mm
Material Jacket	PVC

Les propriétés diffèrent selon les variantes et sous-variantes
