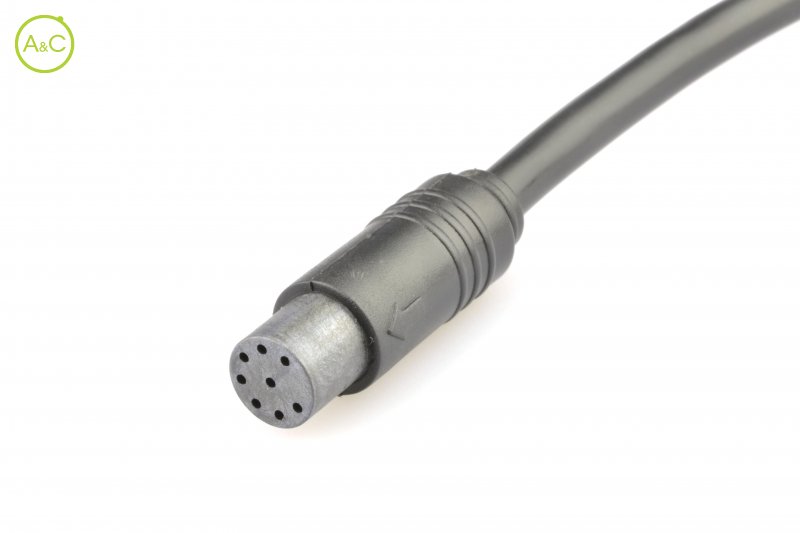

Main female plug connector

Avez-vous des questions sur ce produit?

Télécharger la fiche produit Télécharger le fichier STEP

Plus d’infos sur cette marque:

Article Number	Z812AM P 00 A5 1000
Color	Black
Connector Diameter	12 mm
Wire Section	0.2 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	PVC
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel

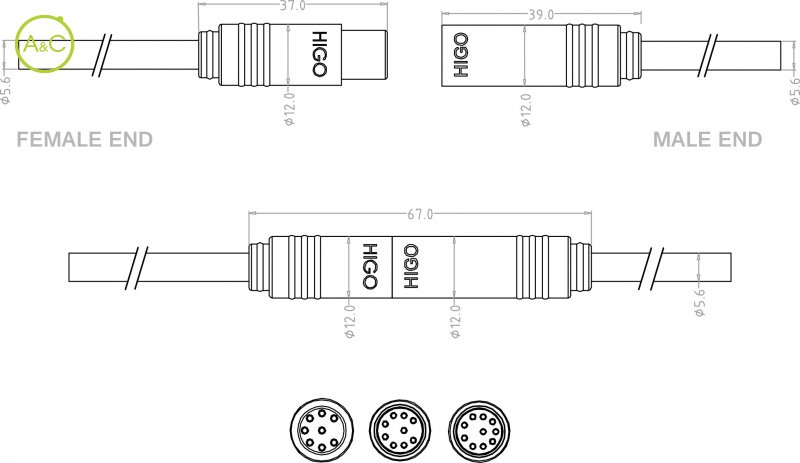

Fitting Length	67 mm
Material Jacket	PVC

Article Number	Z912AM P 00 A6 1000
Color	Black
Connector Diameter	12 mm
Wire Section	0.2 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	PVC
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	67 mm
Material Jacket	PVC

Article Number	Z1012AM P 00 A7 1000
Color	Black
Connector Diameter	12 mm
Wire Section	0.2 mm²
Cable Length	1000 mm
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	5.8 mm
Insulation Wire	PVC
Remark *	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	67 mm
Material Jacket	PVC

Les propriétés diffèrent selon les variantes et sous-variantes
