Connector AWG#28 Green

DD/DS CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	02DD-8M
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	03DD-8M
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	04DD-8M
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	05DD-8M
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	06DD-8M
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	07DD-8M
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	08DD-8M
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	09DD-8M
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	10DD-8M
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	11DD-8M
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	12DD-8M
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	13DD-8M
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	14DD-8M
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	15DD-8M
Number Of Contacts	15
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

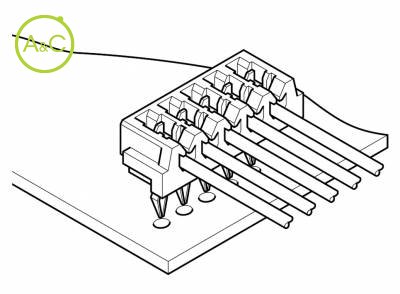

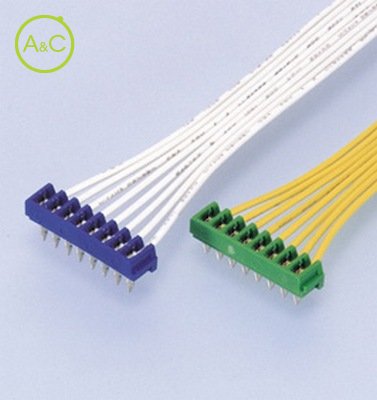

The DD and DS right angle board-in insulation displacement connectors measure just 3.5mm (.138") in mounting height and 4.3mm (.169") in width. Since these right angle connectors are connected to wires running parallel to the printed circuit board, electronic equipment can have a lower profile. These connectors are suited for the high density wiring of electronic products. Compact and low-profile These connectors are very small, with a mounting height of 3.5mm (.138") and a thickness of jsut 4.3mm (.169"). Twin U-slot insulation displacement section The insulation displacement section to which the wire is connected is composed of two highly reliable tin-plated slots (twin U-slots). Compliant locking solder tails The contact solder tails are elastic and have two locking positions, both of which ensure stable connection once inserted into a printed circuit board. The two locking positions of the DD connector are asymmetrical and best suited for use with 0.8mm (.031") and 1.0mm (.039") thick printed circuit boards. The two locking positions of the DS connector are also asymmetrical for use with 1.2mm (.047") and 1.6mm (.063") thick PC boards. Strain relief Thanks to the strain relief construction, the wire insulation is held by the housing when the wire is terminated. Furthermore, sufficient clearance is provided between the insulation displacement section and the strain relief section to ensure decoupling from vibration and tension. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
