Connector Normal Type

FKZ CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	05FKZ-SM1-1-TB
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	06FKZ-SM1-1-TB
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	08FKZ-SM1-1-TB
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	12FKZ-SM1-1-TB
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	14FKZ-SM1-1-TB
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	16FKZ-SM1-1-TB
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	18FKZ-SM1-1-TB
Number Of Contacts	18
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	19FKZ-SM1-1-TB
Number Of Contacts	19
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20FKZ-SM1-1-TB
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	22FKZ-SM1-1-TB
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	23FKZ-SM1-1-TB
Number Of Contacts	23
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	24FKZ-SM1-1-TB
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	26FKZ-SM1-2-TB
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	27FKZ-SM1-2-TB
Number Of Contacts	27
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	30FKZ-SM1-2-TB
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	32FKZ-SM1-2-TB
Number Of Contacts	32
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

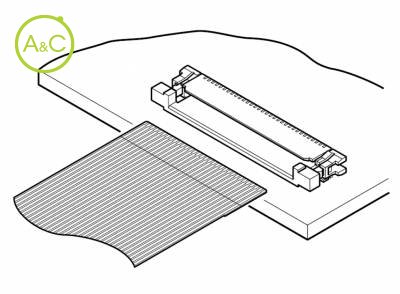

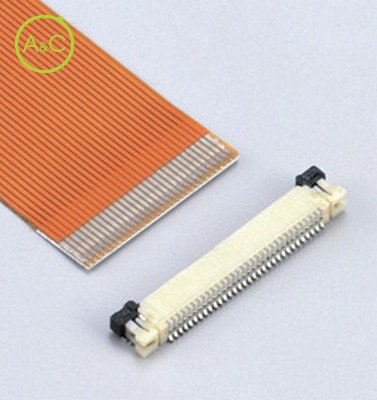

Available both in normal type and reverse type. Space saving The depth is 3.5mm (.138") for the connectors of 25 circuits or less, and 4.0mm (.157") for 26 circuits or more. Low profile Only 1.8mm (.071") height after mounted on the PC board. Zero insertion force mechanism A ZIF mechanism increases wear resistance and extends the connector's mating life. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
