Female Connector for FZ Connector

FZ CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	05FZ-SM1-GAN-TB
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	06FZ-SM1-GAN-TB
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	08FZ-SM1-GAN-TB
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	10FZ-SM1-GAN-TB
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	11FZ-SM1-GAN-TB
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	12FZ-SM1-GAN-TB
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	13FZ-SM1-GAN-TB
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	14FZ-SM1-GAN-TB
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	16FZ-SM1-GAN-TB
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20FZ-SM1-GAN-TB
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	24FZ-SM1-GAN-TB
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

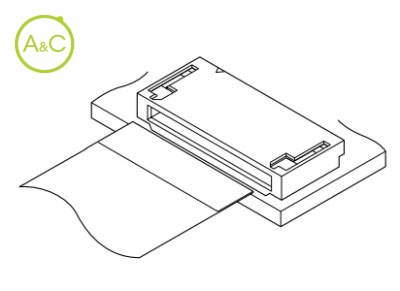

This is a very small surface mount type Non-ZIF 0.4mm pitch connector with a height of 1.0mm and depth of 3.0mm. Double-sided contact structure RoHS Compliant
