Download product sheet

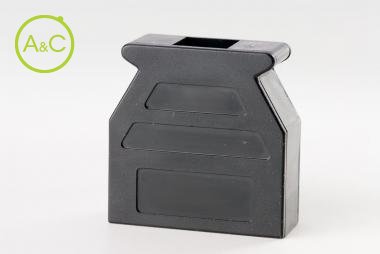

Plastic hood black and metallized with slide-/clip locking and 3 cable outputs
Meer info over dit merk:
Provertha
Number Of Poles
- 9
- 15
- 25
- 37
- 50
Article Number | 07 09 0BT 001 | 07 09 0M 001 |
Number Of Contacts | 9 | 9 |
Upper Temperature | +90 °C | +90 °C |
Lower Temperature | -20 °C | -20 °C |
Plating | Nickel plated copper | Nickel plated copper |
Remark * | Multi opening possible | Multi opening possible |
Material | ABS UL 94-V0 | ABS UL 94-V0 |

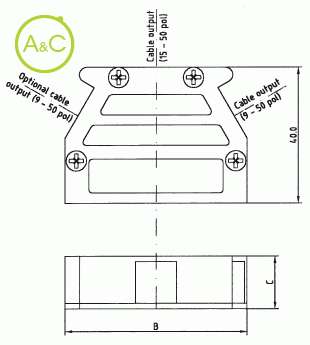

Extra Information | A two-part hood providing 3 cable outputs (9 pole 2 cable outputs) Large interior space for your wiring | A two-part hood providing 3 cable outputs (9 pole 2 cable outputs) Large interior space for your wiring |
Hood Version | black | Metallized |
Locking Style | Slide lock Clip | Slide lock Clip |
Cable Exit | Straight Angled: 2x30°** | Straight Angled: 2x30°** |
Cable Fixing | Clamp intern (al) Clamp extern (al) Crimp flange | Clamp intern (al) Clamp extern (al) Crimp flange |
Cable Diameter Internal Cable Clamp | 4-10 | 4-10 |
Cable Diameter External Cable Clamp | 4-14 | 4-14 |
Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 |
Material/surface Cover Screws | ST Zinc plated | ST Zinc plated |
Eigenschappen verschillen tussen varianten en subvarianten
