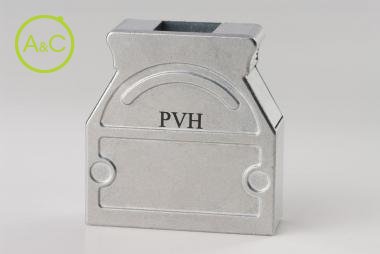

Diecast hood with 2-3 cable outputs slide-/clip locking

Hoods as single parts

07 09 DC 000

07 09 DC 000

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25
37
50

Article Number	07 09 DC 000
Number Of Contacts	9
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Remark	Crimping flange must be ordered seperately
Material	zn alloy
Extra Information	Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style	Slide lock Clip lock
Cable Exit	Straight 180° Angled: 2x30°
Cable Fixing	Crimp flange
Cable Diameter Crimping Flange	2,7-8,7
Material/surface Locking Screws Diecast	ST tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	07 15 DC 000
Number Of Contacts	15
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Remark	Crimping flange must be ordered seperately
Material	zn alloy
Extra Information	Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style	Slide lock Clip lock
Cable Exit	Straight 180° Angled: 2x30°
Cable Fixing	Crimp flange
Cable Diameter Crimping Flange	2,7-8,7
Material/surface Locking Screws Diecast	ST tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	07 25 DC 000
Number Of Contacts	25
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Remark	Crimping flange must be ordered seperately
Material	zn alloy
Extra Information	Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style	Slide lock Clip lock
Cable Exit	Straight 180° Angled: 2x30°
Cable Fixing	Crimp flange
Cable Diameter Crimping Flange	2,7-8,7
Material/surface Locking Screws Diecast	ST tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	07 37 DC 000
Number Of Contacts	37
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Remark	Crimping flange must be ordered seperately
Material	zn alloy
Extra Information	Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style	Slide lock Clip lock
Cable Exit	Straight 180° Angled: 2x30°
Cable Fixing	Crimp flange
Cable Diameter Crimping Flange	3,7-15,7
Material/surface Locking Screws Diecast	ST tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	07 50 DC 000
Number Of Contacts	50
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Remark	Crimping flange must be ordered seperately
Material	zn alloy
Extra Information	Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style	Slide lock Clip lock
Cable Exit	Straight 180° Angled: 2x30°
Cable Fixing	Crimp flange
Cable Diameter Crimping Flange	3,7-15,7
Material/surface Locking Screws Diecast	ST tin plated
Material/surface Cover Screws	ST Zinc plated

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC

Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC

Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC

Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC

Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
