Binder
Number Of Poles
- 3+PE

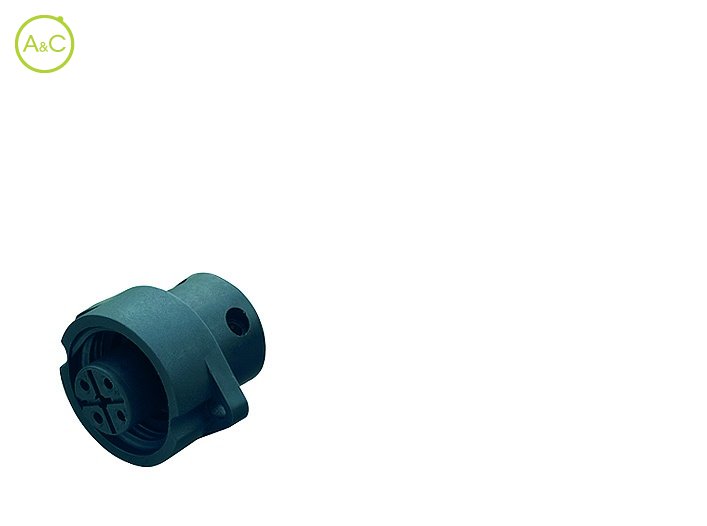

| Article Number | 09 0212 00 04 |

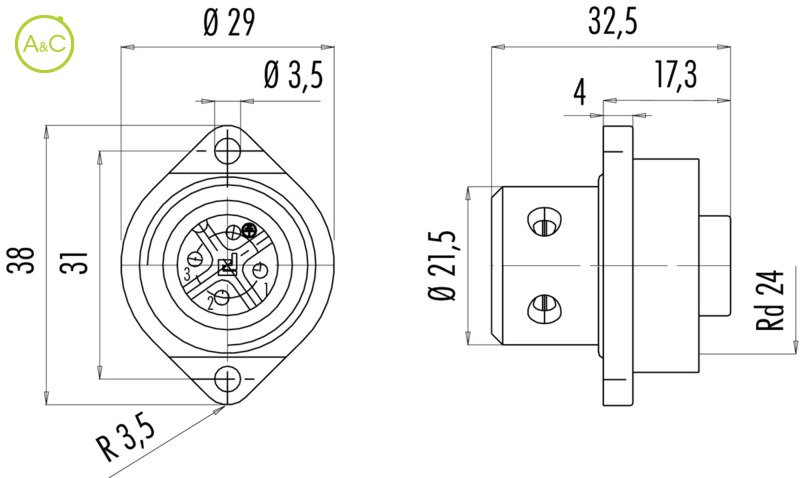

| Connector Diameter | 21.5 mm |
| Number Of Contacts | 3+PE contacts |
| Connector Locking System | Screw (RD24) |
| Termination | Screw |
| Wire Section | 0,5 - 2,5 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +100 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 400 |
| Rated Impuls Voltage | 6000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 16 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Ag (Silver) |
| Material Of Insert | PBT |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
