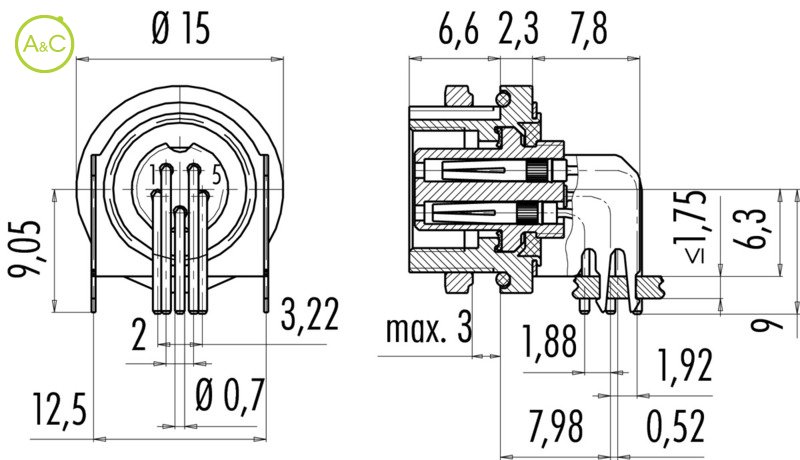

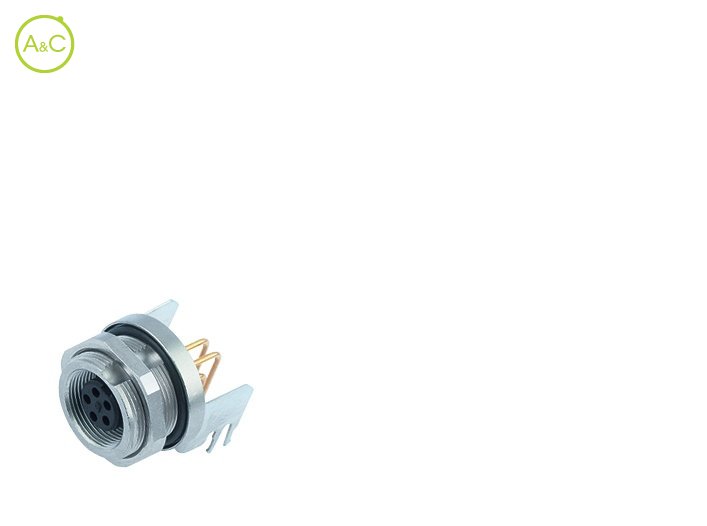

Female panel mount connector

Dip solder, front fastened with shielding sheet, angled

09-0404-55-02

09-0404-55-02

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

2
5

Article Number	09 0404 55 02
Number Of Contacts	2 contacts
Connector Locking System	Screw (M9)
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	09 0416 55 05
Number Of Contacts	5 contacts
Connector Locking System	Screw (M9)
Termination	Dip solder
Protection Degree	IP67
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
