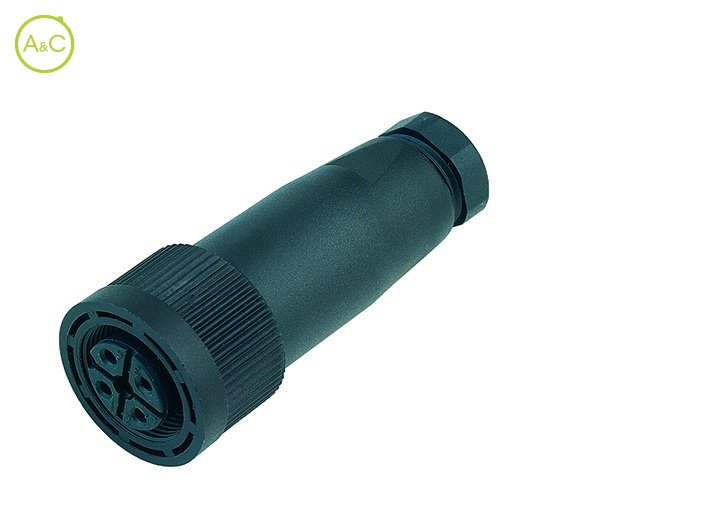

Female cable connector

Number Of Poles

  • 4
Article Number 09 0440 10 04 09 0440 010 04 99 0440 16 04 99 0440 016 04

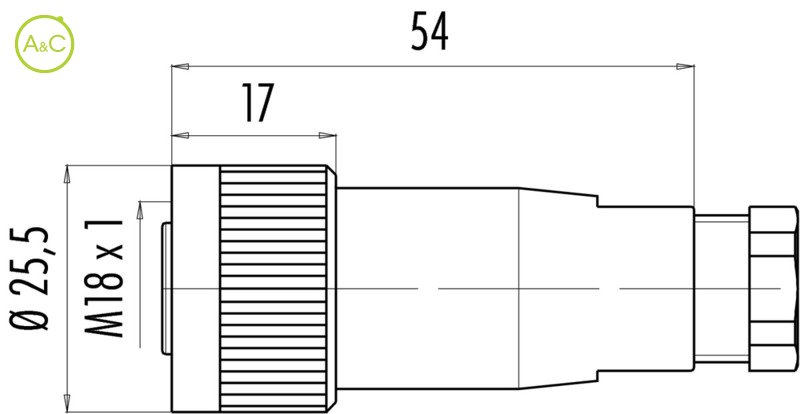

Connector Diameter 25.5 mm 25.5 mm 25.5 mm 25.5 mm
Number Of Contacts 4 contacts 4 contacts 4 contacts 4 contacts
Connector Locking System Screw (M18) Screw (M18) Screw (M18) Screw (M18)
Termination Screw Screw Screw Screw
Wire Section 1.5 mm² 1.5 mm² 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67 IP67 IP67
Mating Cycles >50 times >50 times >50 times >50 times
Upper Temperature +85 °C +85 °C +85 °C +85 °C
Lower Temperature -25 °C -25 °C -25 °C -25 °C
Rated Voltage 250 250 250 250
Rated Impuls Voltage 4000 V 4000 V 4000 V 4000 V
Pollution Degree 3 3 3 3
Overvoltage Categorie III III III III
Material Group III III III III
Rated Current (40°) 16 A cUR 5 A 16 A cUR 5 A
Max. Contact Resistance 8 mΩ 8 mΩ 8 mΩ 8 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass) CuZn (Brass) CuZn (Brass)
Plating CuSnZn (Optalloy) CuSnZn (Optalloy) CuSnZn (Optalloy) CuSnZn (Optalloy)
Material Of Insert PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0)
Material Of Housing PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0) PA (UL 94 HB) / PBT (UL 94-0)
Product sheet Download product sheet Download product sheet Download product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
