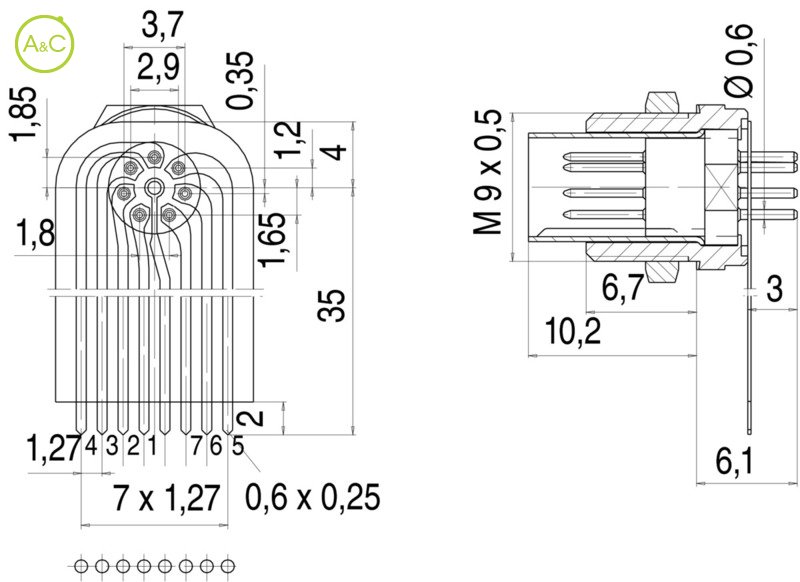

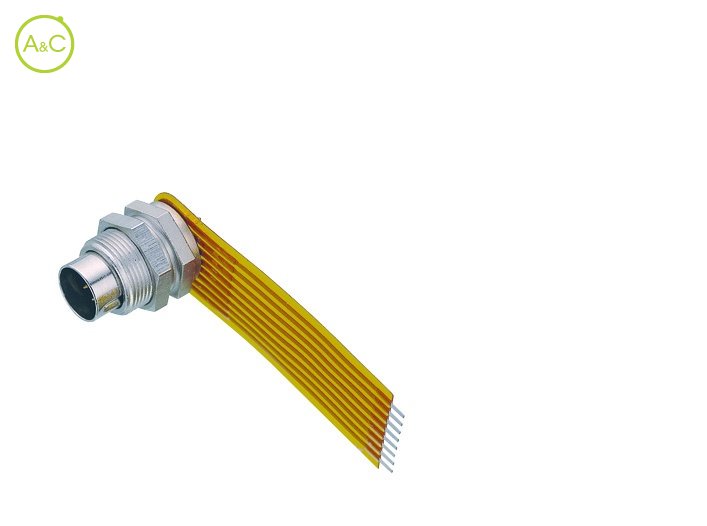

Male panel mount connector

With flexible PCB

09-0477-65-07

09-0477-65-07

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

7
8

Article Number	09 0477 65 07
Connector Diameter	11.5 mm
Number Of Contacts	7 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	09 0481 65 08
Connector Diameter	11.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M9)
Termination	Solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
