Number Of Poles
- 4

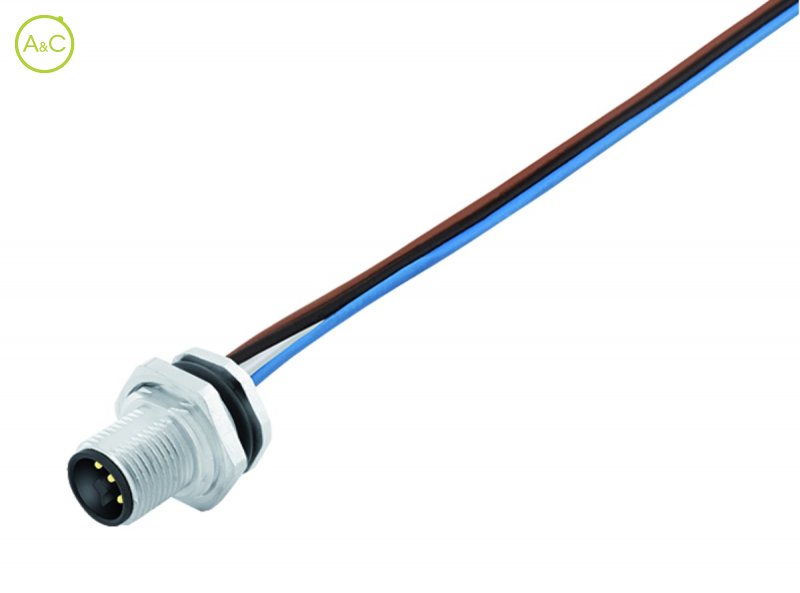

Article Number | 09 0631 120 04 |

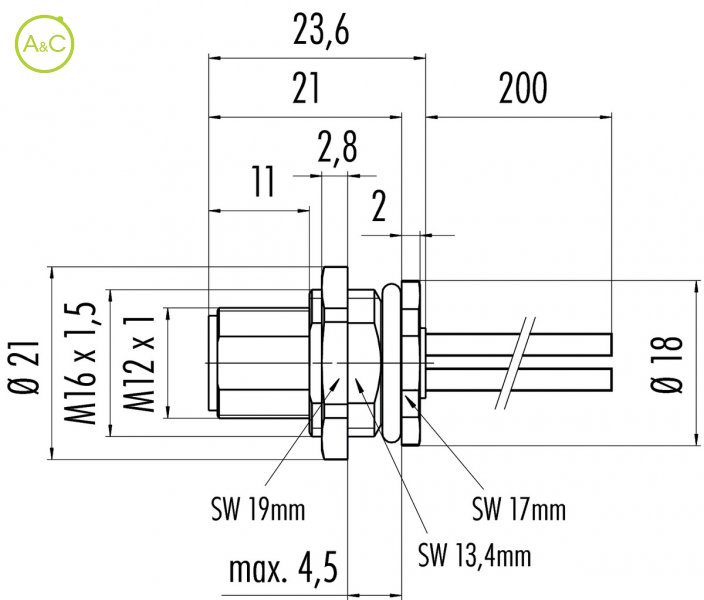

Connector Diameter | 21 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Screw(M12-T) |
Termination | Single wires |
Wire Section | 1.5 mm² |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 63 |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 3 |
Overvoltage Categorie | III |
Material Group | III |
Rated Current (40°) | 12 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | Zinc diecasting nickel plated |
Fixing Thread | M16 x 1,5 |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
