Binder
Number Of Poles
- 2+PE
- 4
- 4+PE

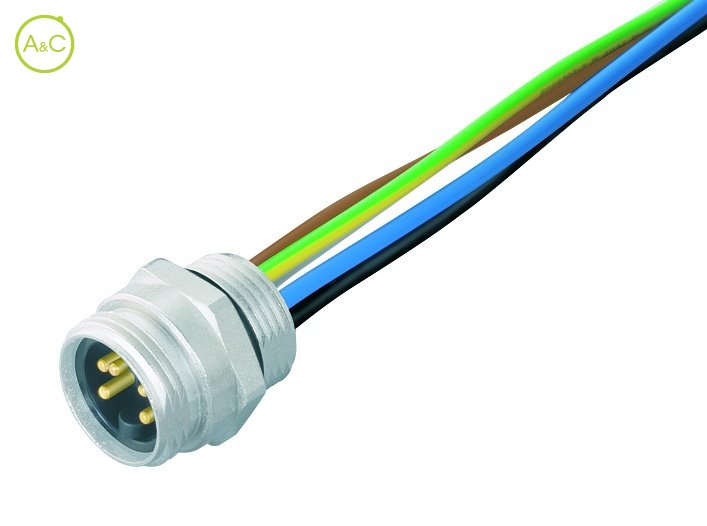

| Article Number | 09 2447 310 03 | 09 2447 300 03 | 09 2447 320 03 |

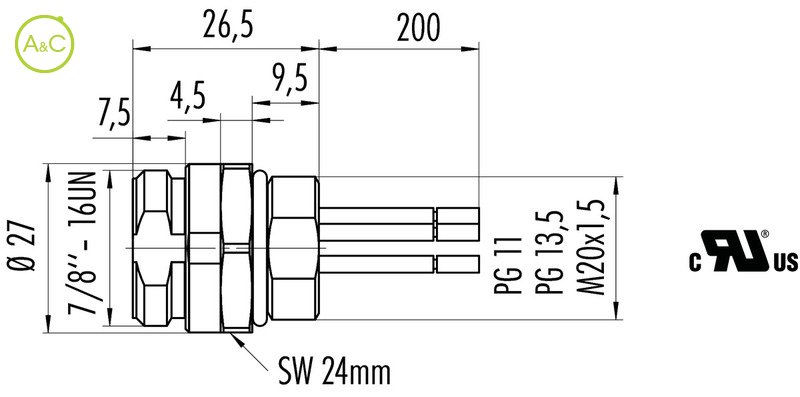

| Connector Diameter | 27 mm | 27 mm | 27 mm |
| Number Of Contacts | 2+PE contacts | 2+PE contacts | 2+PE contacts |
| Connector Locking System | Screw (7/8"-16 UN) | Screw (7/8"-16 UN) | Screw (7/8"-16 UN) |
| Termination | Single wires | Single wires | Single wires |
| Wire Section | 0.82 mm² | 0.82 mm² | 0.82 mm² |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| Rated Voltage | 300 (UL 600) | 300 (UL 600) | 300 (UL 600) |
| Rated Impuls Voltage | 2500 V | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | III | III | III |
| Material Group | III | III | III |
| Rated Current (40°) | 10 A | 10 A | 10 A |
| Max. Contact Resistance | 5 mΩ | 5 mΩ | 5 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR (UL 94 HB) | PUR (UL 94 HB) | PUR (UL 94 HB) |
| Material Of Housing | Brass nickel plated / zinc diecasting nickel plated | Brass nickel plated / zinc diecasting nickel plated | Brass nickel plated / zinc diecasting nickel plated |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
