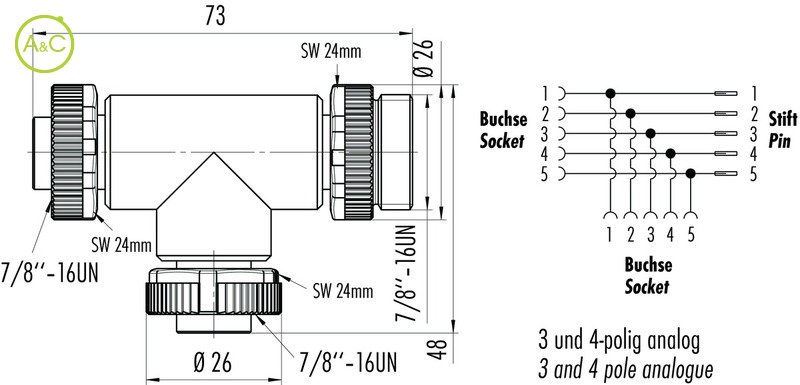

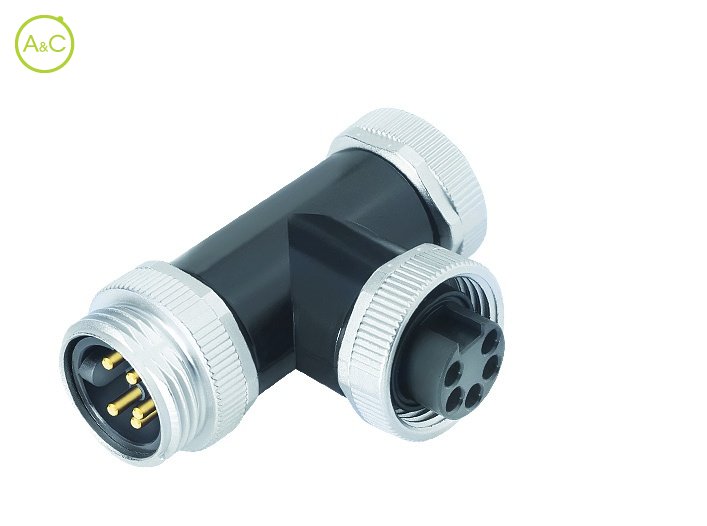

Splitter, pin 7/8", pin/socket 7/8"

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	09 2473 100 03
Connector Diameter	26 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (7/8"-16 UN)
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	10 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR (UL 94 HB)
Material Of Housing	Macromelt / brass nickel plated
Product sheet	Download product sheet

Article Number	09 2474 100 04
Connector Diameter	26 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (7/8"-16 UN)
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	8 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR (UL 94 HB)
Material Of Housing	Macromelt / brass nickel plated
Product sheet	Download product sheet

Article Number	09 2475 100 05
Connector Diameter	26 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (7/8"-16 UN)
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	300
Rated Impuls Voltage	4000 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	8 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PUR (UL 94 HB)
Material Of Housing	Macromelt / brass nickel plated
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
