Binder
Number Of Poles
- 3
- 4
- 6
- 8

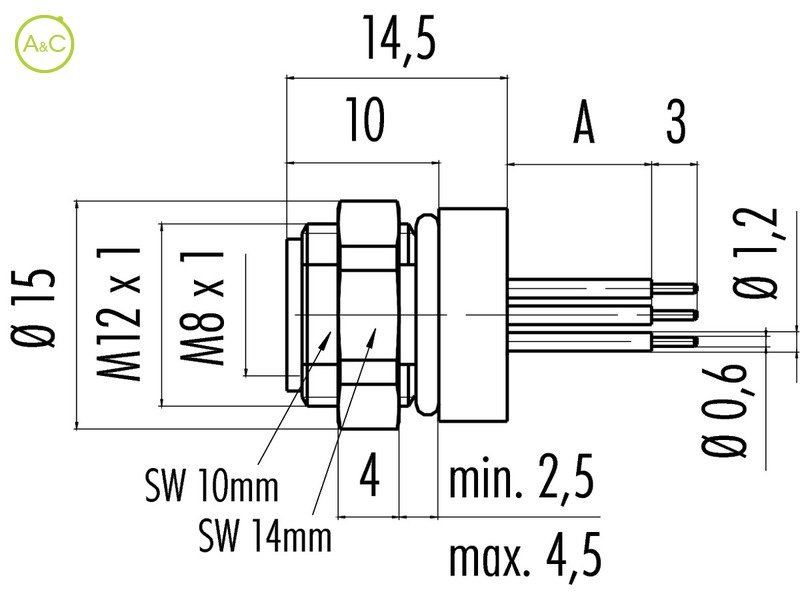

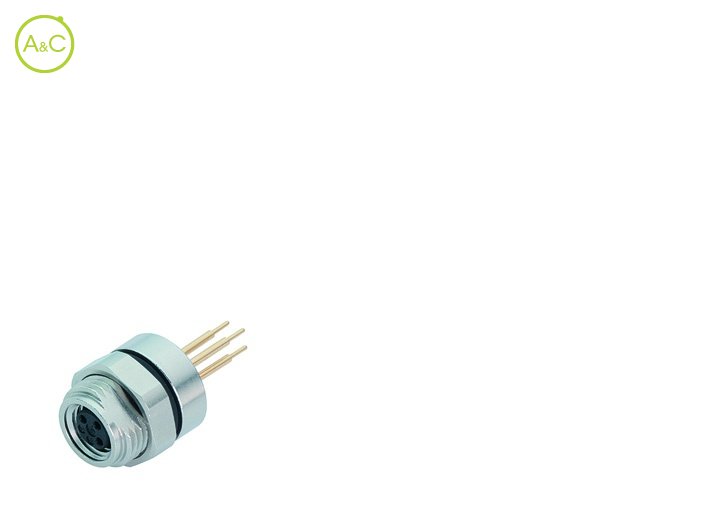

| Article Number | 09 3412 80 03 | 09 3412 187 03 | 09 3412 186 03 |
| Connector Diameter | 15 mm | 15 mm | 15 mm |
| Number Of Contacts | 3 contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M8) | Screw (M8) | Screw (M8) |
| Termination | Dip solder | Dip solder | Dip solder |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 60 | 60 | 60 |
| Rated Impuls Voltage | 800 V | 800 V | 800 V |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II |
| Material Group | II | II | II |
| Rated Current (40°) | 4 A | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA | PA |
| Material Of Housing | CuZn (Brass nickel plated) | CuZn (Brass nickel plated) | CuZn (Brass nickel plated) |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
