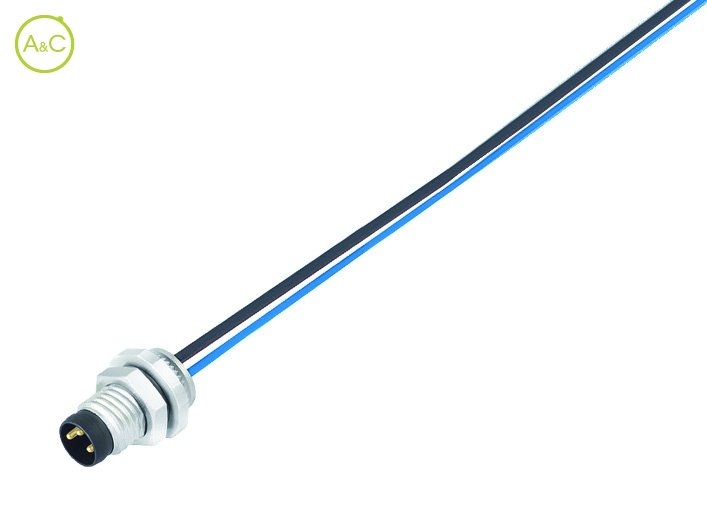

Male panel mount connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

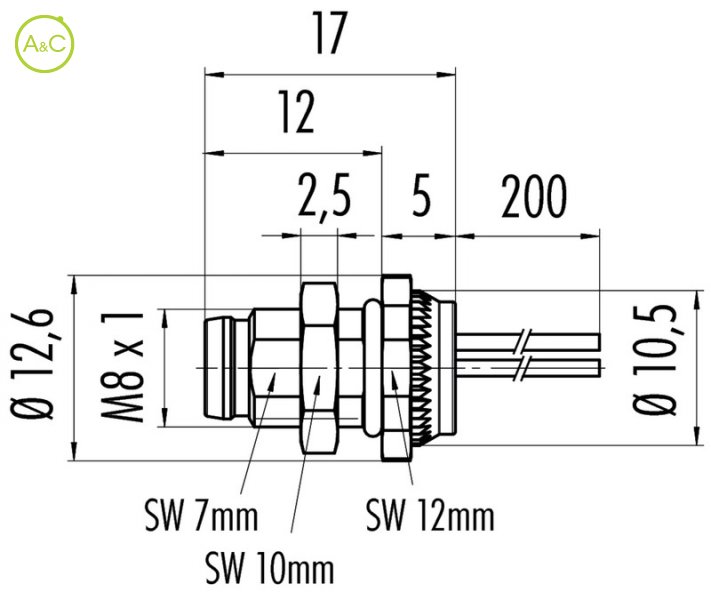

Article Number	09 3419 86 03
Connector Diameter	12.6 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw, snap-in
Termination	Single wires 0,25 mm
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 3421 86 04
Connector Diameter	12.6 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw, snap-in
Termination	Single wires 0,25 mm
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 3425 86 05
Connector Diameter	12.6 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw, snap-in
Termination	Single wires 0,25 mm
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 3423 86 06
Connector Diameter	12.6 mm
Number Of Contacts	6 contacts
Connector Locking System	Screw, snap-in
Termination	Single wires 0,14 mm
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 3427 86 08
Connector Diameter	12.6 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw, snap-in
Termination	Single wires 0,14 mm
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
