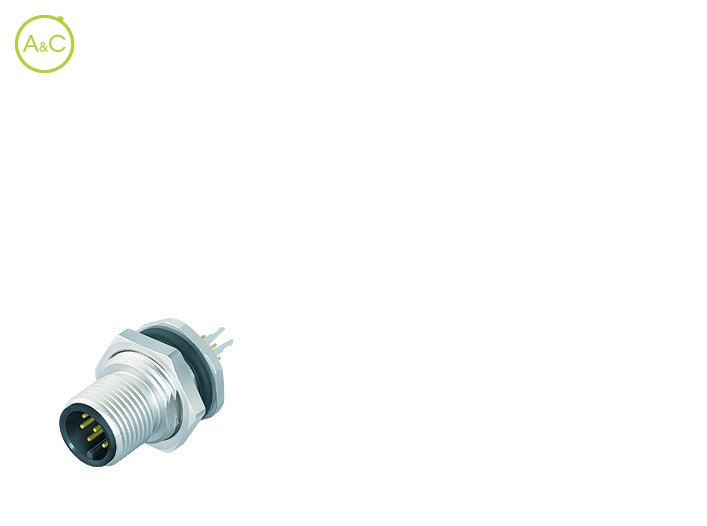

Male panel mount connector

  • Front fastened, with shielding sheet, dip solder
  • UL-approval

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number 86 0531 1120 00004
Old Article Number 09 3431 600 04

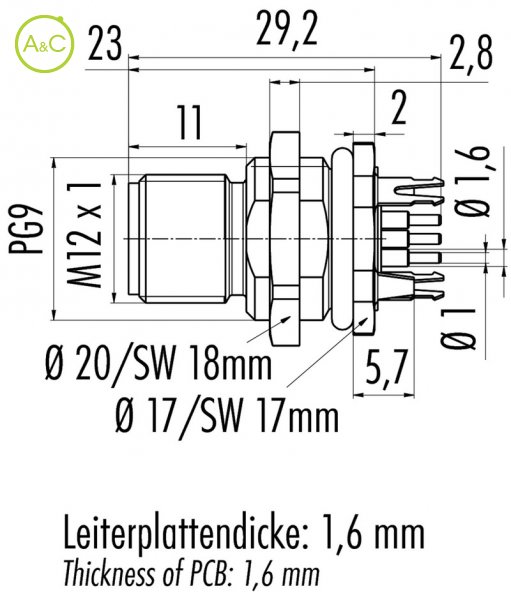

Connector Diameter 12 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Protection Degree IP68
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass nickel plated
Fixing Thread PG 9
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
