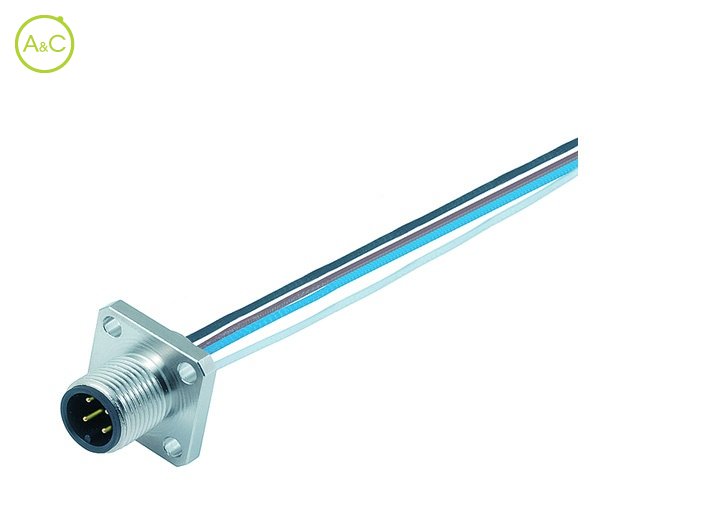

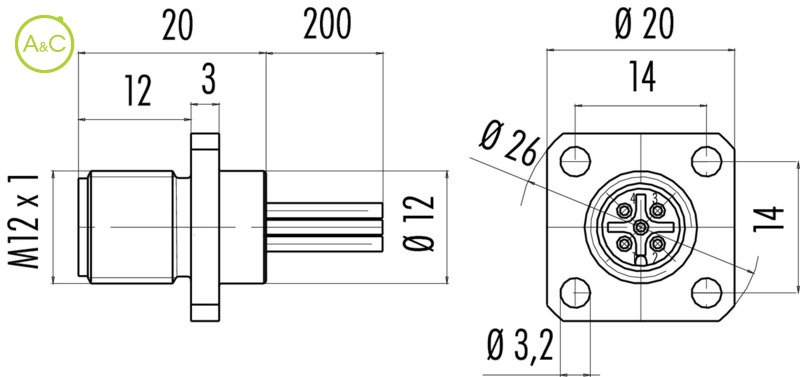

Male panel mount connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	76 0931 0111 00004 0200
Old Article Number	09 3433 00 04
Connector Diameter	12 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP40/IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	brass/zinc diecasting nickel plated
Fixing Thread	Socket
Product sheet	Download product sheet

Article Number	76 0931 0111 00005 0200
Old Article Number	09 3443 00 05
Connector Diameter	12 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP40/IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	brass/zinc diecasting nickel plated
Fixing Thread	Socket
Product sheet	Download product sheet

Article Number	76 0931 0111 00008 0200
Old Article Number	09 3483 00 08
Connector Diameter	12 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP40/IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	brass/zinc diecasting nickel plated
Fixing Thread	Socket
Product sheet	Download product sheet

Article Number	76 0931 0111 00012 0200
Old Article Number	09 3493 00 12
Connector Diameter	12 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Single wires
Wire Section	0.14 mm²
Protection Degree	IP40/IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	brass/zinc diecasting nickel plated
Fixing Thread	Socket
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
