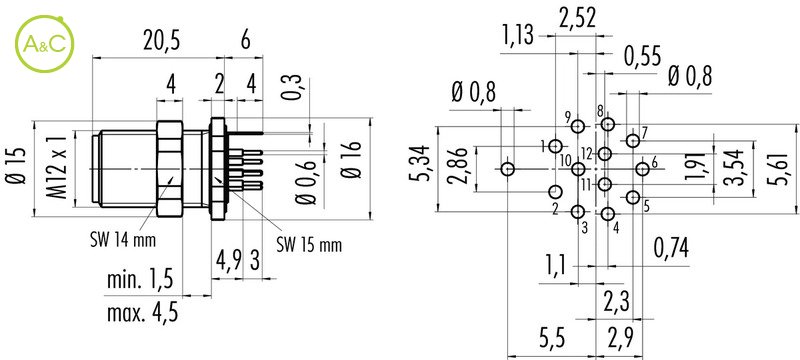

Male panel mount connector

  • Front fastened, dip solder, 8 mm contact length

Number Of Poles

  • 12
  • 12 (with shielding sheet)
Article Number 09 3491 969 12
Connector Diameter 16 mm
Number Of Contacts 12 contacts
Connector Locking System Screw (M12-A)
Termination Dip solder
Protection Degree IP68
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 30
Rated Impuls Voltage 500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group II
Rated Current (40°) 2 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing Brass nickel plated
Fixing Thread M12 x 1
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
