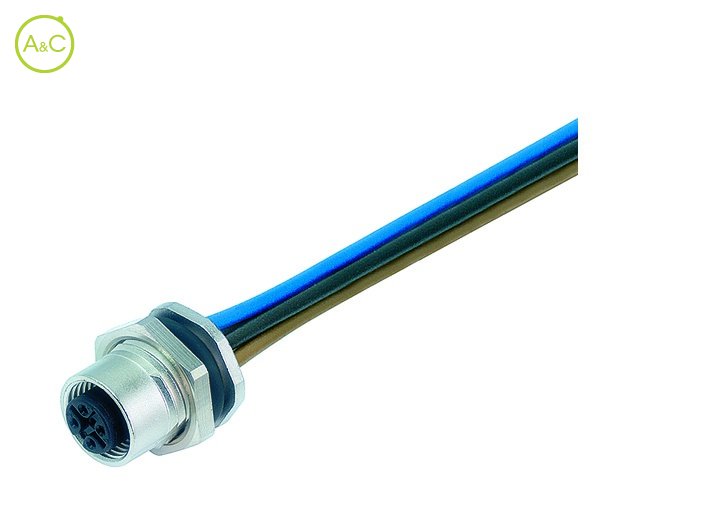

Female panel mount connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

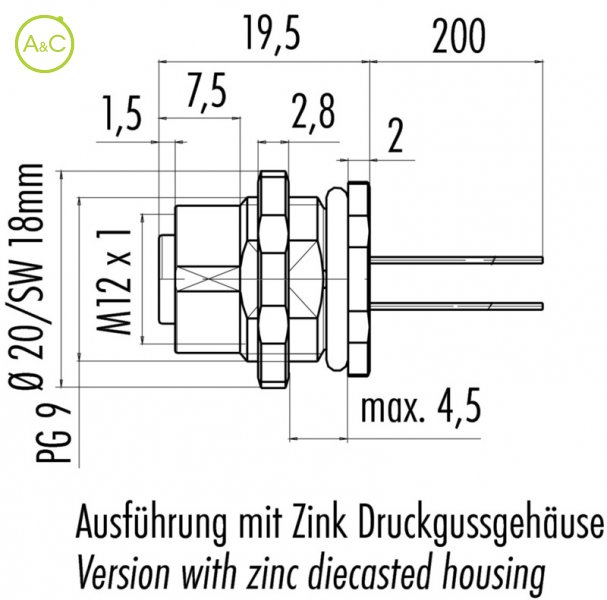

Article Number	09 4432 116 04
Connector Diameter	20 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-B)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR/PA
Material Of Housing	Zinc diecasting nickel plated
Fixing Thread	PG9
Product sheet	Download product sheet

Article Number	09 4442 116 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-B)
Termination	Single wires
Wire Section	0.25 mm²
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PUR/PA
Material Of Housing	Zinc diecasting nickel plated
Fixing Thread	PG9
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
