Binder
Number Of Poles
- 5

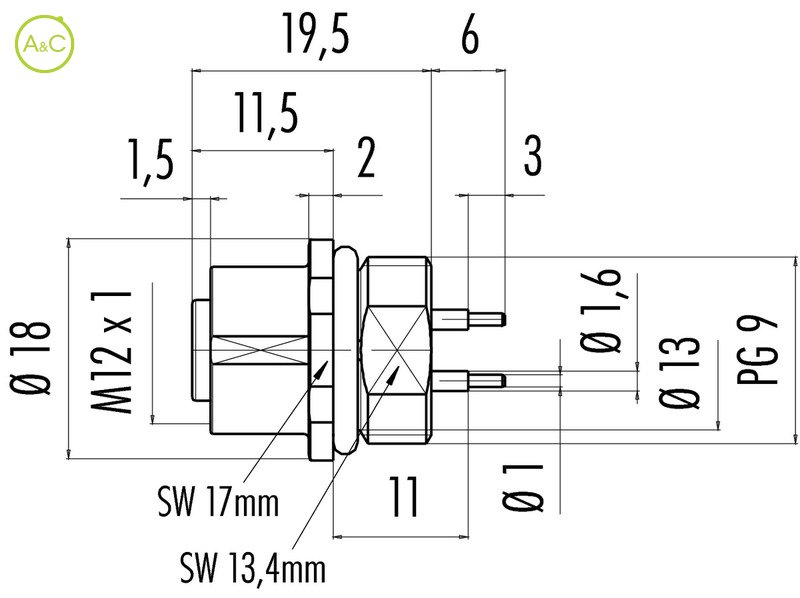

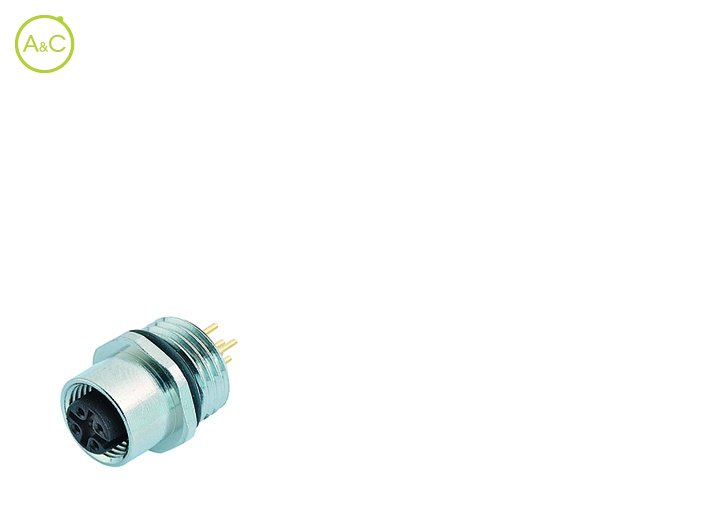

| Article Number | 09 4446 88 05 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 5 contacts |
| Connector Locking System | Screw (M12-B) |
| Termination | Dip solder |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 125 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Brass / Zinc diecasting nickel plated |
| Fixing Thread | PG9 |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
