Number Of Poles
- 3
- 4
- 5

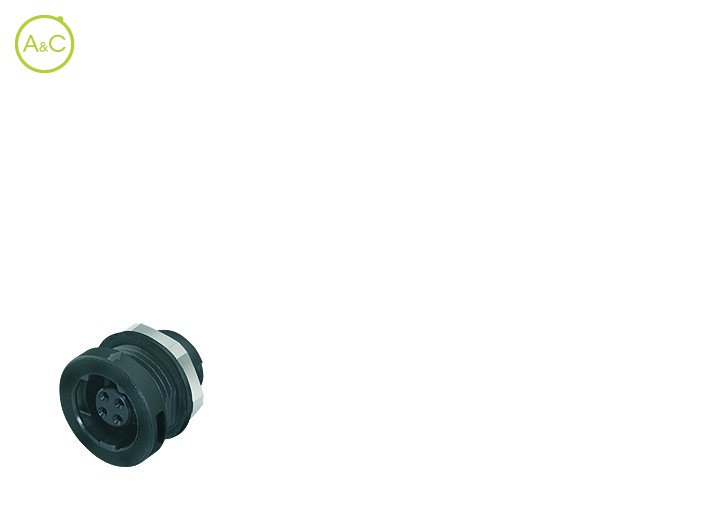

Article Number | 09 4708 00 03 |

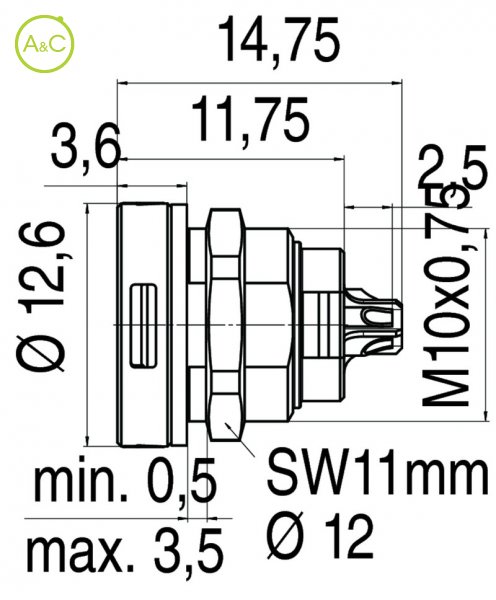

Connector Diameter | 12.6 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Micro Push-Pull |
Termination | Solder |
Wire Section | 0.14 mm² |
Protection Degree | IP67 |
Mating Cycles | >1000 times |
Upper Temperature | +80 °C |
Lower Temperature | -40 °C |
Rated Voltage | 125 |
Rated Impuls Voltage | 1500 V |
Pollution Degree | 2 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 1 A |
Max. Contact Resistance | 8 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | PA |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
