Binder
Number Of Poles
- 4

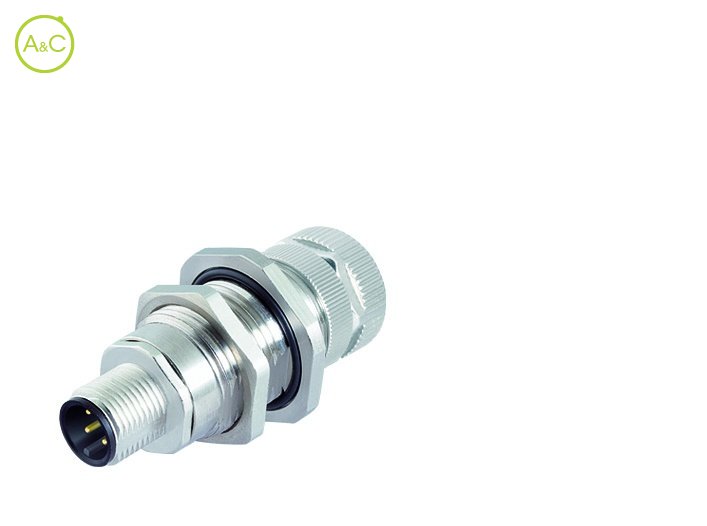

| Article Number | 09 5242 00 04 |

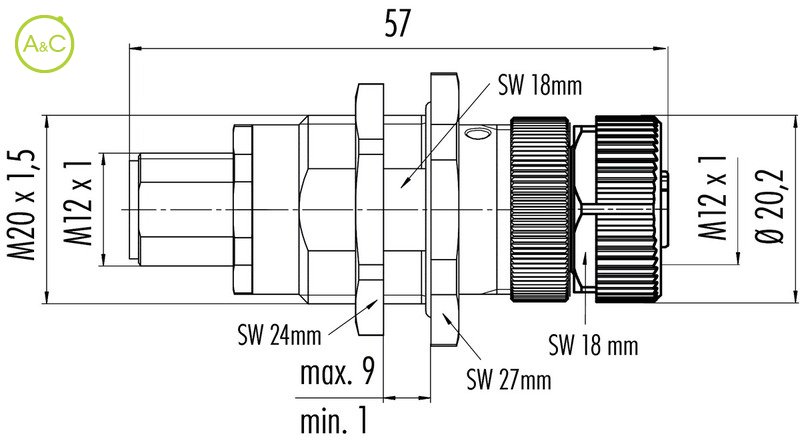

| Connector Diameter | 20.2 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M12-B) |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | III |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA (UL 94 HB) |
| Material Of Housing | Zinc diecasting nickel plated / brass nickel plated |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
