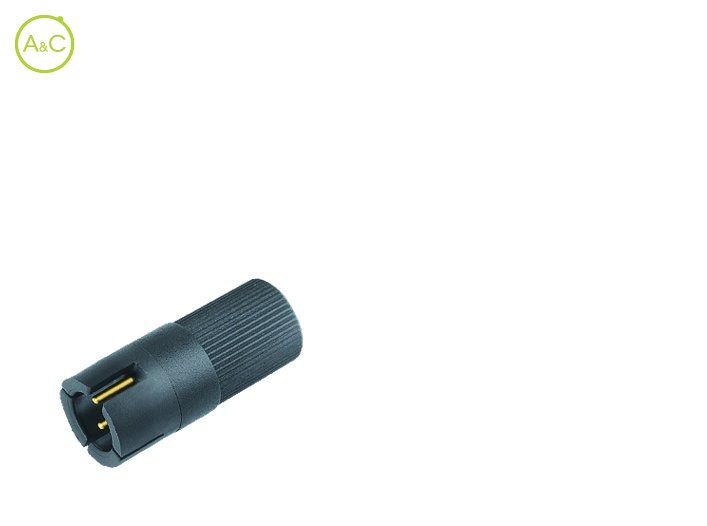

Male cable connector

  • Without strain relief

Number Of Poles

  • 3
  • 4
  • 5
Article Number 09 9747 00 03

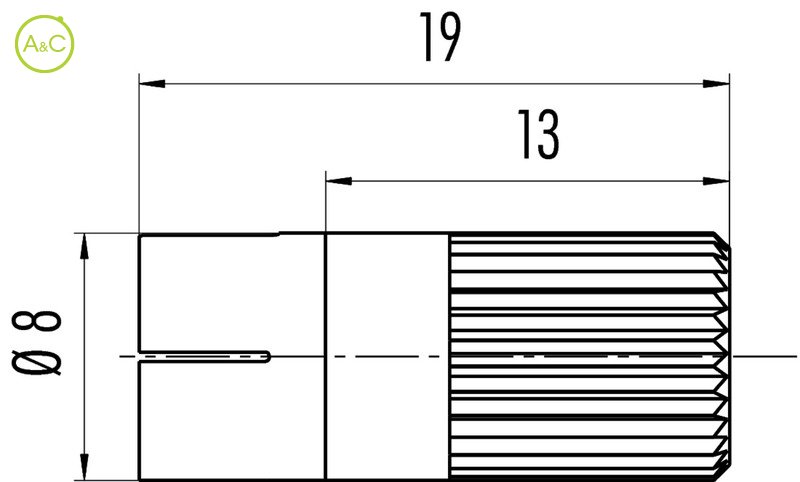

Connector Diameter 8 mm
Number Of Contacts 3 contacts
Connector Locking System Snap-in
Termination Solder
Wire Section 0.25 mm²
Protection Degree IP40
Mating Cycles >100 times
Upper Temperature +70 °C
Lower Temperature -25 °C
Rated Voltage 60
Rated Impuls Voltage 800 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 3 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA
Material Of Housing PA
Cable Outlet 3.6 mm
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
