Binder
Number Of Poles
- 3
- 4
- 5

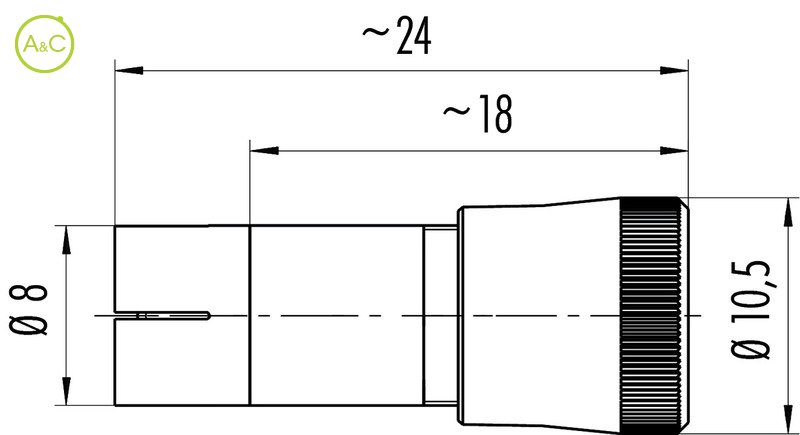

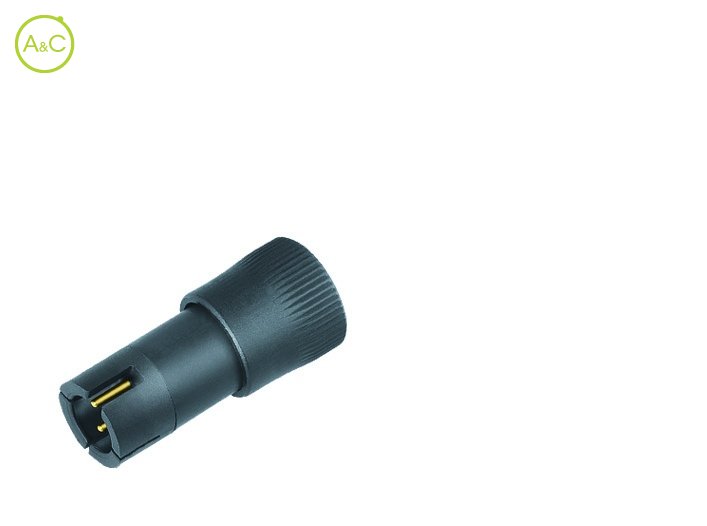

| Article Number | 09 9747 70 03 | 09 9747 71 03 |
| Connector Diameter | 10.5 mm | 10.5 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Snap-in | Snap-in |
| Termination | Solder | Solder |
| Wire Section | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP40 | IP40 |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +70 °C | +70 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 60 | 60 |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 1 | 1 |
| Overvoltage Categorie | II | II |
| Material Group | III | III |
| Rated Current (40°) | 3 A | 3 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA |
| Material Of Housing | PA | PA |
| Cable Outlet | 4 mm | 5 mm |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
