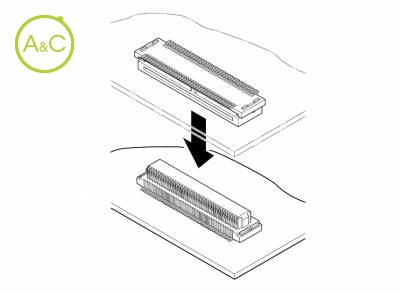

Receptacle for JAS connector

JAS CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	80R-JASKS-GWAN-TF
Number Of Contacts	80
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.3 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark	Stacking heigt 4.0 mm

Article Number	100R-JASKS-GWAN-TF	100R4.5-JASKS-GWAN-TF
Number Of Contacts	100	100
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	0.4mm Pitch Board-to-Board Connector	0.4mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	0.40 mm	0.40 mm
Rated Current (ac/dc)	0.3 A	0.3 A
Rated Voltage (ac/dc)	30 V	30 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark	Stacking heigt 4.0 mm	Stacking heigt 4.5 mm

Article Number	120R4.5-JASKS-GWAN-TF2
Number Of Contacts	120
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.4mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.40 mm
Rated Current (ac/dc)	0.3 A
Rated Voltage (ac/dc)	30 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark	Stacking heigt 4.0 mm

Eigenschappen verschillen tussen varianten en subvarianten

The plug housing consists of two separate parts. This allows the connector to be put under greater torsion strain than similar connectors without any damage being given to the solder joints. Both plug and receptacle have the double I type solder tabs, which reduces the stress by the distorted mating/unmating applied to the solder tails. RoHS Compliant
