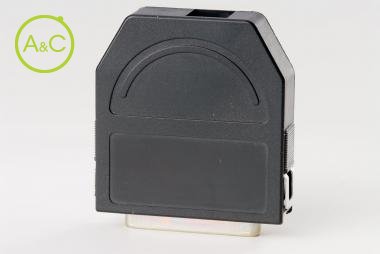

Quick lock plastic hood

Long version as set

103 09 0BT 001

103 09 0BT 001

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25
37
50

Article Number	103 09 0BT 001	103 09 0M 001
Number Of Contacts	9	9
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs
Hood Version	black	Metallized
Locking Style	Push-Pull Quick-Lock	Push-Pull Quick-Lock
Cable Exit	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°
Cable Fixing	Clamp intern (al) Clamp extern (al) Crimp flange	Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp	4-10	4-10
Cable Diameter External Cable Clamp	4-14	4-14
Cable Diameter Crimping Flange	2,7-8,7	2,7-8,7
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	103 15 0BT 001	103 15 0M 001
Number Of Contacts	15	15
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs
Hood Version	black	Metallized
Locking Style	Push-Pull Quick-Lock	Push-Pull Quick-Lock
Cable Exit	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°
Cable Fixing	Clamp intern (al) Clamp extern (al) Crimp flange	Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp	4-12	4-12
Cable Diameter External Cable Clamp	4-14	4-14
Cable Diameter Crimping Flange	2,7-8,7	2,7-8,7
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	103 25 0BT 001	103 25 0M 001
Number Of Contacts	25	25
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs
Hood Version	black	Metallized
Locking Style	Push-Pull Quick-Lock	Push-Pull Quick-Lock
Cable Exit	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°
Cable Fixing	Clamp intern (al) Clamp extern (al) Crimp flange	Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp	4-12	4-12
Cable Diameter External Cable Clamp	4-14	4-14
Cable Diameter Crimping Flange	2,7-8,7	2,7-8,7
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	103 37 0BT 001	103 37 0M 001
Number Of Contacts	37	37
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs
Hood Version	black	Metallized
Locking Style	Push-Pull Quick-Lock	Push-Pull Quick-Lock
Cable Exit	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°
Cable Fixing	Clamp intern (al) Clamp extern (al) Crimp flange	Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp	7-15	7-15
Cable Diameter External Cable Clamp	8-16	8-16
Cable Diameter Crimping Flange	3,7-15,7	3,7-15,7
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	103 50 0BT 001	103 50 0M 001
Number Of Contacts	50	50
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs	New, innovative locking system Quick, single hand action, secure latching, highest retention force Quicker assembly as Screw-and Slide locking system approved for automobiles 2-3 cable inputs
Hood Version	black	Metallized
Locking Style	Push-Pull Quick-Lock	Push-Pull Quick-Lock
Cable Exit	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°	Straight Angled: - 9P: 1x 15° - 15P: 1x30° - 25-50P: 2x30°
Cable Fixing	Clamp intern (al) Clamp extern (al) Crimp flange	Clamp intern (al) Clamp extern (al) Crimp flange
Cable Diameter Internal Cable Clamp	7-15	7-15
Cable Diameter External Cable Clamp	8-16	8-16
Cable Diameter Crimping Flange	3,7-15,7	3,7-15,7
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Eigenschappen verschillen tussen varianten en subvarianten
