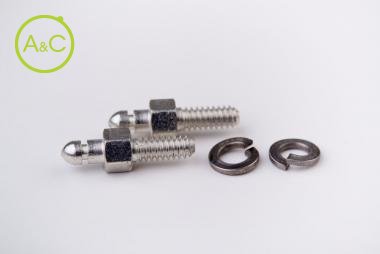

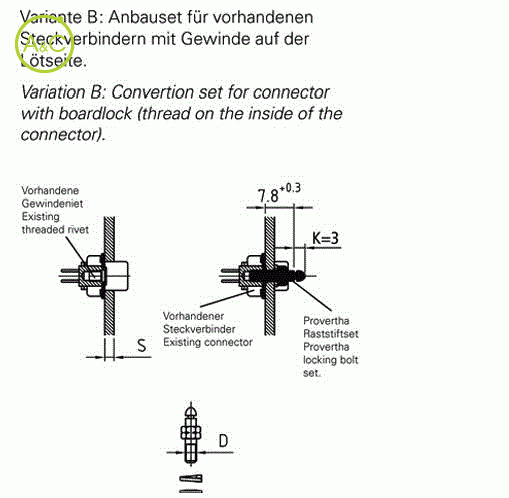

Convertion set for connectors with boardlock

104 TA 002

104 TA 002

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Thread

4-40 UNC
M3

Article Number	104 TA 002	104 T 1002	104 T 15002	104 T 22002
Remark	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head
Panel Thickness S	/	1,0-1,3	1,5-1,8	2,2-2,5

Article Number	104 M3TA 002	104 M3T 1002	104 M3T 15002	104 M3T 22002
Remark	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head	To provide an even better assembly of the QLH to the connector the locking bolt can be supplied with an extended head
Panel Thickness S	/	1,0-1,3	1,5-1,8	2,2-2,5

Eigenschappen verschillen tussen varianten en subvarianten
