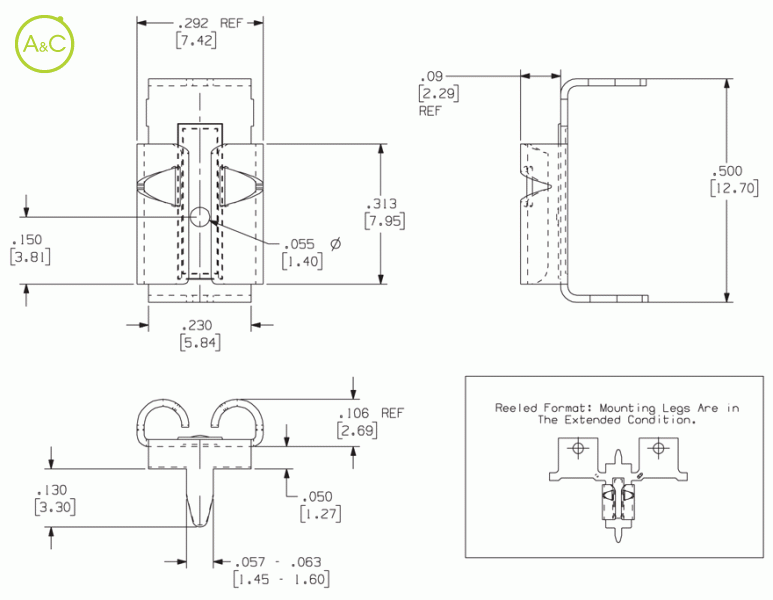

0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles

Mating type Horizontal
With dimple 1,40 mm

1093

1093

1093

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Insertion Force-max.

5.0 lbs.
10.0 lbs.

Article Number	1090
Remark	With steel test tab
Packaging	Loose
Extra Description	With dimple 1,40 mm
Mating Terminal Size	0.250" x 0.025" (6.35mm x 0.64mm) Tab 0.205" x 0.025" (5.21mm x 0.64mm) Tab
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Mating Type	Horizontal
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	2 holes 0.063" ±0.003" (1.6mm ±0.076mm) on 0.500" ±0.003" (12.7mm ±0.076mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Horizontal
Temperature Rating	-65° to 85°C
Withdrawal Force-max.	1.0 lb. (4.45N)*
Pieces Per Reel (loose Part No.)	NA
Product sheet	Download product sheet

Article Number	1093
Remark	With steel test tab
Packaging	Loose
Extra Description	With dimple 1,40 mm
Mating Terminal Size	0.250" x 0.032" (6.35mm x 0.81mm) Tab 0.205" x 0.032" (5.21mm x 0.81mm) Tab
Material Thickness / Type	0.016" (0.41mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	20 Amperes
Mating Type	Horizontal
Mounting Type	Outward or Inward Splay
Mounting Hole Diameter	2 holes 0.063" ±0.003" (1.6mm ±0.076mm) on 0.500" ±0.003" (12.7mm ±0.076mm) centers
Resistance Rating	10mOhm Max
Mating Entry	Horizontal
Temperature Rating	-65° to 85°C
Withdrawal Force-max.	2.0 lbs. (8.90N)*
Pieces Per Reel (loose Part No.)	NA
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
