Zierick
Packaging
- Loose
- Reeled
- reeled

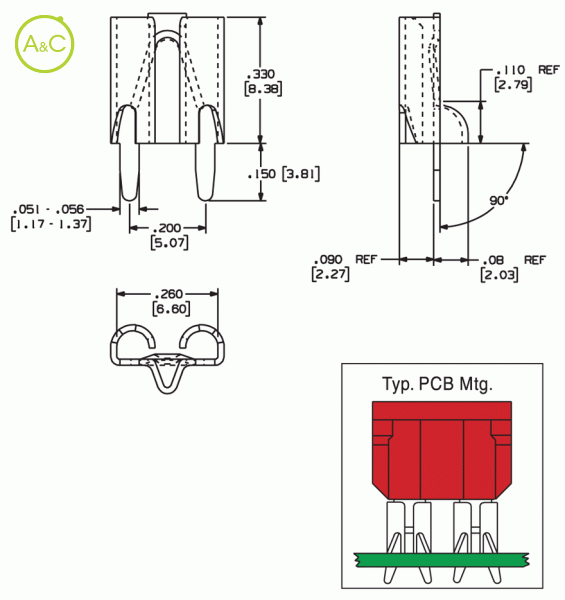

| Article Number | 1154 | 1225 |
| Remark | With steel test tab | With steel test tab |
| Extra Description | Without dimple | Without dimple |
| Mating Terminal Size | 0.250" x 0.025" (6.35mm x 0.64mm) Tab or Fuse | 0.250" x 0.032" (6.35mm x 0.81mm) Tab |
| Material Thickness / Type | 0.016" (0.41mm) C26000 Brass | 0.016" (0.41mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper | 100% Tin over Copper |
| Current Rating | 20 Amperes (with Brass Tab) | 20 Amperes (with Brass Tab) |
| Applicator System | Loose: ZPT81-A Reeled: Model 9700, 9700 XY | Loose: ZPT81-A Reeled: Model 9700, 9700 XY |
| Mounting Type | Outward or Inward Splay | Outward or Inward Splay |
| Mounting Hole Diameter | 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers | 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers |
| Resistance Rating | 10mOhm Max | 10mOhm Max |
| Mating Entry | Top | Top |
| Temperature Rating | -65° to 85°C | -65° to 85°C |
| Insertion Force-max. | 5.0 lbs. (22.24N)* | 10.0 lbs. (44.48N)* |
| Withdrawal Force-max. | 1.5 lbs. (6.73N)* | 1.5 lbs. (6.73N)* |
| Pieces Per Reel (loose Part No.) | NA | NA |
| Pieces Per Reel (reeled Part No.) | / | / |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
