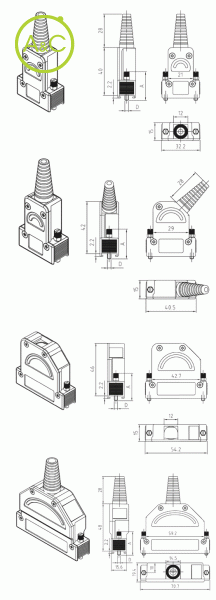

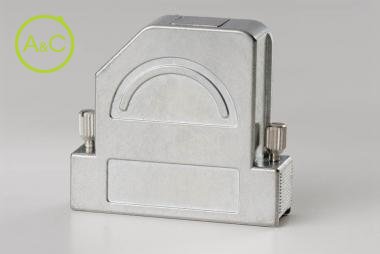

Quick mount Die cast hoods with knurled screw locking cable output 180° and 135°
Meer info over dit merk:
Provertha
Provertha
Number Of Poles
- 25
- 37
- 50
| Article Number | 117252DC50001 | 117253DC50001 |
| Number Of Contacts | 25 | 25 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Thread | UNC 4-40 | M3 |
| Material | zn alloy | zn alloy |
| Locking Style | knurled screw | knurled screw |
| Cable Exit | Straigt 180° Angled: 1x 180° | Straigt 180° Angled: 1x 180° |
| Cable Fixing | Cable clamp intern (al) | Cable clamp intern (al) |
| Cable Outputs | 2 | 2 |
| Cable Diameter Internal Cable Clamp | 4-12 | 4-12 |
| Material Knurled Screws, Cover Screws And Cable Clamp Screws | ST tin plated | ST tin plated |
| Compact Thickness For 9-25 Poles For Installation In Sub-devices With 3 Te | 15 | 15 |
Eigenschappen verschillen tussen varianten en subvarianten
Accessoires
