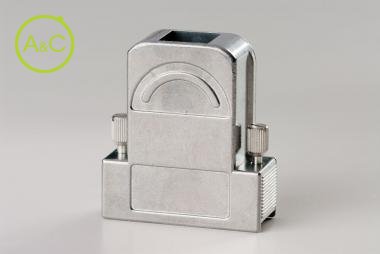

Compact DVI 360° EMI/RFI full metal hood with knurled locking screws
Meer info over dit merk:
Provertha
Number Of Poles
- 15
Article Number | 119150DC25000 | 119151DC25000 | 119152DC25000 | 119153DC25000 | 119156DC25000 | 119157DC25000 | 119158DC25000 | 119159DC25000 |
Number Of Contacts | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
Thread | UNC-4-40 | M3 | UNC-4-40 | M3 | UNC-4-40 | M3 | UNC-4-40 | M3 |
Material | zn alloy | zn alloy | zn alloy | zn alloy | zn alloy | zn alloy | zn alloy | zn alloy |
Locking Style | Knurled screw | Knurled screw | Knurled screw | Knurled screw | Knurled screw | Knurled screw | Knurled screw | Knurled screw |
Cable Exit | Straight 180° | Straight 180° | Straight 180° | Straight 180° | Straight 180° | Straight 180° | Straight 180° | Straight 180° |
Cable Fixing | Cable clamp External (al) Crimp flange | Cable clamp External (al) Crimp flange | Cable clamp External (al) Crimp flange | Cable clamp External (al) Crimp flange | Cable clamp internal (al) | Cable clamp External (al) Crimp flange | Cable clamp internal (al) | Cable clamp External (al) Crimp flange |
Cable Diameter External Cable Clamp | 4-14 | 4-14 | 4-14 | 4-14 | 4-14 | 4-14 | 4-14 | 4-14 |
Cable Diameter Crimping Flange | 2,7-8,7 | 2,7-8,7 | 2,7-8,7 | 2,7-8,7 | 2,7-8,7 | 2,7-8,7 | 2,7-8,7 | 2,7-8,7 |
Material/surface Locking Screws Diecast | ST tin plated | ST tin plated | ST tin plated | ST tin plated | ST tin plated | ST tin plated | ST tin plated | ST tin plated |
Material/surface Cover Screws | ST Zinc plated | ST Zinc plated | ST Zinc plated | ST Zinc plated | ST Zinc plated | ST Zinc plated | ST Zinc plated | ST Zinc plated |
Eigenschappen verschillen tussen varianten en subvarianten
