JST
Number Of Poles
- 140
| Article Number | 140PS-JUXK-G-B |
| Number Of Contacts | 140 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.6mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.60 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Eigenschappen verschillen tussen varianten en subvarianten

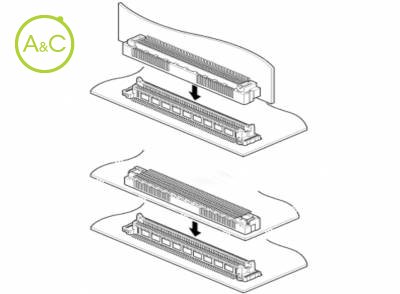

This connector is a small 0.6mm pitch double-row board-to-board connector for high density mounting.
This plug is available in top and side entry type to choose either connection type depending on its usage.
With guide system for mating
Outstanding click feeling when mating
Space saving
Vertical and horizontal mounting
RoHS Compliant
