Female Connector for FLZX Connector

FLZX CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	18FLZX-RSM1-A-TB
Number Of Contacts	18
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20FLZX-RSM1-A-TB
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	24FLZX-RSM1-A-TB
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	32FLZX-RSM1-A-TB
Number Of Contacts	32
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	34FLZX-RSM1-A-TB
Number Of Contacts	34
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	40FLZX-RSM1-A-TB
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	50FLZX-RSM1-A-TB
Number Of Contacts	50
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector For FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Eigenschappen verschillen tussen varianten en subvarianten

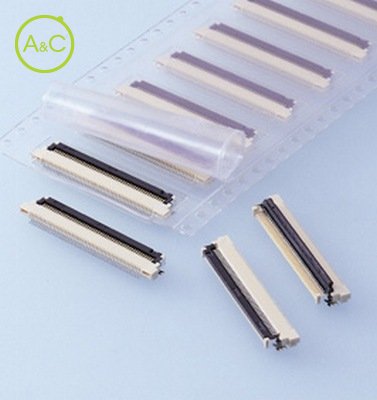

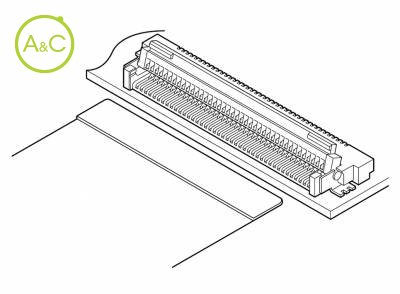

Developed with usability and strength in mind. This 0.5mm pitch FFC/FPC ZIF type connector, adopts a rotating type locking cover which allows for easy insertion of the FFC/FPC and facilitates structural integrity of the finished connector assembly. Available in 20 to 50 circuit variations and made using heat resistant materials, for SMT process environments, this connector is suitable for many small electronic applications. Rotating type cover The change of mechanism of the cover from the slider to the rotating type makes the inserting operation easier. Reliable cover New mechanism has been adopted to prevent the cover from coming off when it is used with a big circuit FFC or FPC by adopting a bigger rotating shaft sustained by solder tab and held by the contacts. Heat resistant design for surface mounting It is designed to be used in the reflowing process by using a heat resistant material for the housing. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
