JST
Number Of Poles
- 25
| Article Number | 19LR-RWZV-K2GG-R6 |
| Number Of Contacts | 25 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 1.25 mm |
| Rated Current (ac/dc) | Signl/1.0 Power/15 A |
| Rated Voltage (ac/dc) | Signl/50 Power/250 V |
Eigenschappen verschillen tussen varianten en subvarianten

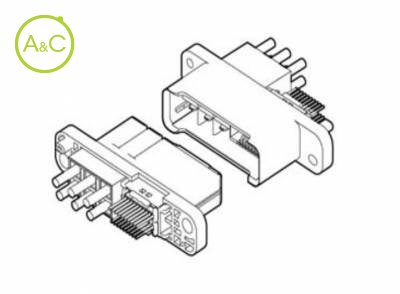

This connector is a hybrid type double-row drawer connector combined signal and power supply circuits connector to connect the units. RWZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating.
Signal circuit 1.5mm pitch lever-locking type
Hybrid type
High durability
Absorbed misalignment mechanism
RoHS Compliant
