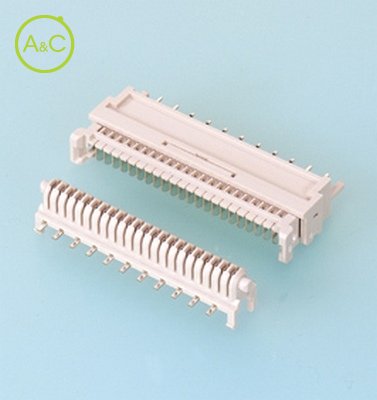

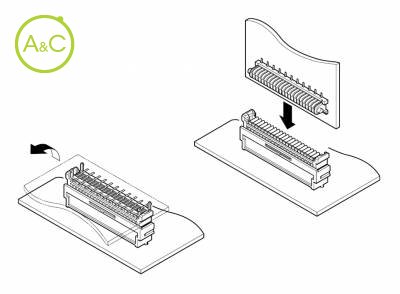

Hinge type board-to-board connectors which allow mated PCBs to move 90 degrees in respect to one another while electricity is turned on. The hinge compensates for slight misalignments between circuit boards, even if the boards are laterally or perpendicularly out of line up to 0.5mm (.020"). Hinged connection With hinge construction, the HQM connector features flexibility. Thus this board-to-board connector allows mated PCB's to move 90° in respect to one another while electricity is turned on. Flexible connection by absorbing circuit board misalignment The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are out of line up to 0.5mm (.020"). Thus design and circuit checks can be as easily made as opening a door. Connector halves can be mated after mounting on circuit boards Connector halves can be mated after mounting on circuit boards. The boards can then be rotated 90°. This will ease equipment maintenance by allowing access to tight spaces. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
