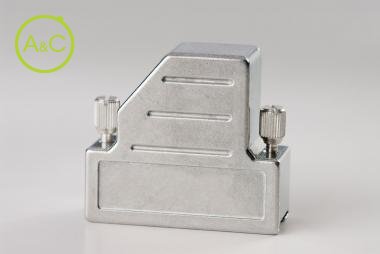

Diecast hoods with side cable output and screw locking

Hood set packed in bag

47 09 DC 25 001

47 09 DC 25 001

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25

Article Number	47 09 DC 25 001
Number Of Contacts	9
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Angled 1x40°
Cable Fixing	Crimp flange
Cable Diameter Internal Cable Clamp	4-10
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	47 15 DC 25 001
Number Of Contacts	15
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Angled 1x40°
Cable Fixing	Crimp flange
Cable Diameter Internal Cable Clamp	4-12
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Article Number	47 25 DC 25 001
Number Of Contacts	25
Upper Temperature	+90 °C
Lower Temperature	-20 °C
Thread	UNC 4-40
Remark	Crimping flange needs te be ordered seperately
Material	Zn alloy
Extra Information	Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style	knurled screw
Cable Exit	Angled 1x40°
Cable Fixing	Crimp flange
Cable Diameter Internal Cable Clamp	4-12
Material/surface Locking Screws Diecast	St tin plated
Material/surface Cover Screws	ST Zinc plated

Eigenschappen verschillen tussen varianten en subvarianten
