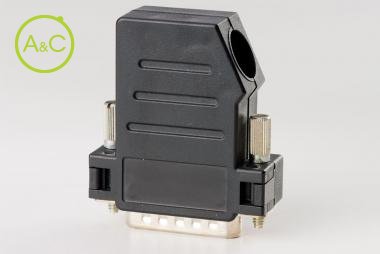

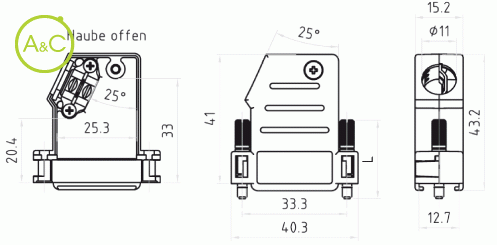

Compact D-Sub plastic hood for mixed layout connectors and standard use
Meer info over dit merk:
Provertha
Thread
- M3
- UNC 4-40
Article Number | 47 15 5B 25 T 000 | 47 15 5M 25 T 000 |
Cable Diameter Range | 5-11 mm | 5-11 mm |
Number Of Contacts | 15 | 15 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
Cable Diameter | 5-11 mm | 5-11 mm |
Material | ABS UL 94-V0 | ABS UL 94-V0 |
Colour | Black | Black |
Hood Version | black with 25 mm knurled screw | Metallized with 25 mm knurled screw |
Locking Style | knurled screw | knurled screw |
Cable Exit | Angled 1x25° | Angled 1x25° |
Starting Torque | Max. 35 Ncm | Max. 35 Ncm |
Metallization | Nickel plated | Nickel plated |
Eigenschappen verschillen tussen varianten en subvarianten
