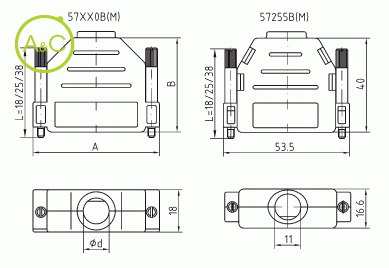

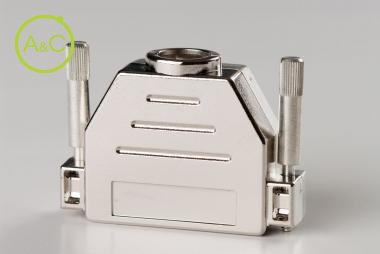

Clip hood with side screw locks

  • Clip hood as single parts
Download product sheet

Number Of Poles

  • 25
Article Number 57 25 5B 25 T 000 57 25 5M 25 T 000
Number Of Contacts 25 25
Upper Temperature +90 °C +90 °C
Lower Temperature -20 °C -20 °C
Plating Nickel plated copper Nickel plated copper
Thread UNC 4-40 UNC 4-40
Remark For a fastening screw with M3 thread put in the article number M3 before the "T" For a fastening screw with M3 thread put in the article number M3 before the "T"
Material ABS UL 94-V0 ABS UL 94-V0
Extra Information Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors Reduced assembly time by clip- or pin connection between both parts of the hood Suitable for flat-strip connectors
Hood Version black with 25 mm slotted screw Metallized with 25 mm thumb screw + slot
Locking Style knurled screw knurled screw
Cable Exit Straight Straight
Cable Fixing Clamp intern (al) Clamp intern (al)
Cable Diameter Internal Cable Clamp 4-12 4-12
Material/surface Cover Screws ST Zinc plated ST Zinc plated
Eigenschappen verschillen tussen varianten en subvarianten
