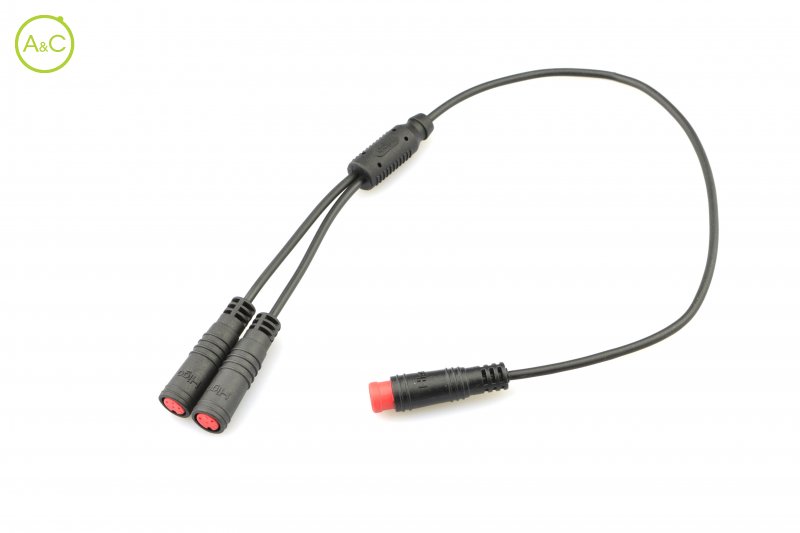

Parallel Y,2 female/1male,2P,50-1200mm,TPUØ2,4mm
Meer info over dit merk:
Higo
Higo
Number Of Poles
- 2
| Article Number | 6300.0015 |
| Color | Red |
| Connector Diameter | 9 mm |
| Wire Section | 0.14 mm² |
| Protection Degree | IP66 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper Alloy |
| Cable Diameter | 2.4 mm |
| Insulation Wire | Teflon |
| Remark | Other cable length/type on request |
| Rated Current | 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Fitting Length | 62 mm |
| Material Jacket | TPU |
Eigenschappen verschillen tussen varianten en subvarianten
