Binder
Number Of Poles
- 4

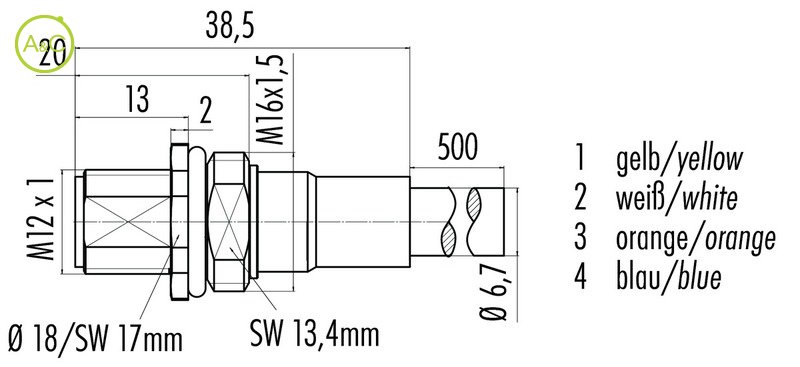

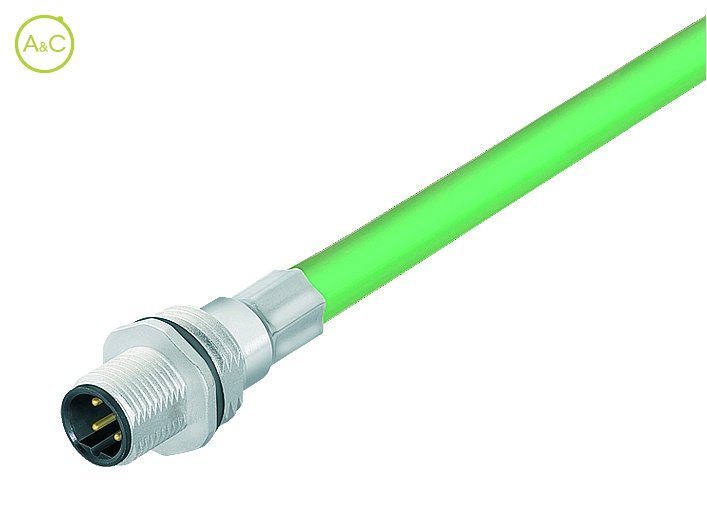

| Article Number | 70 3733 705 04 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M12-D) |
| Termination | PUR-cable |
| Wire Section | 0.25 mm² |
| Cable Length | 0.5 mm |
| Protection Degree | IP68* |
| Mating Cycles | >100 times |
| Upper Temperature | +60 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Brass / Zinc diecasting nickel plated |
| Cable Diameter | 6,7 mm |
| Fixing Thread | M16x1,5 |
| Remark * | *When built-in, connected and locked with counterpart |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
