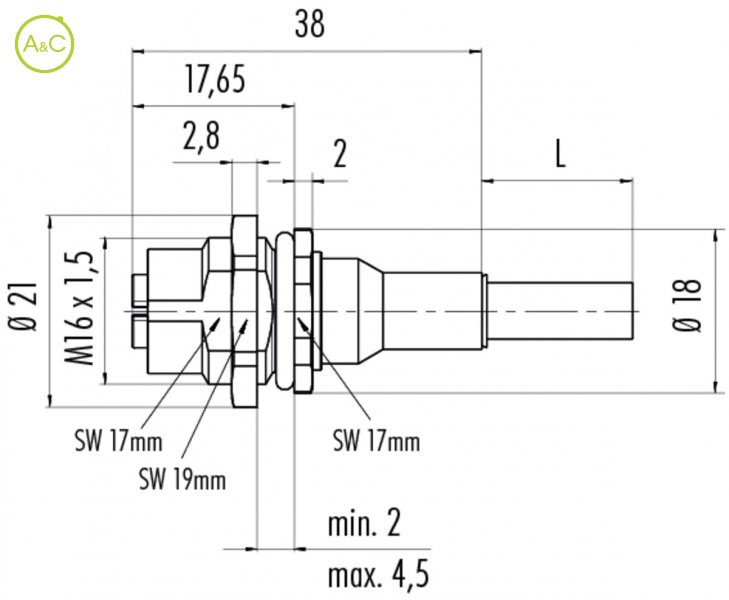

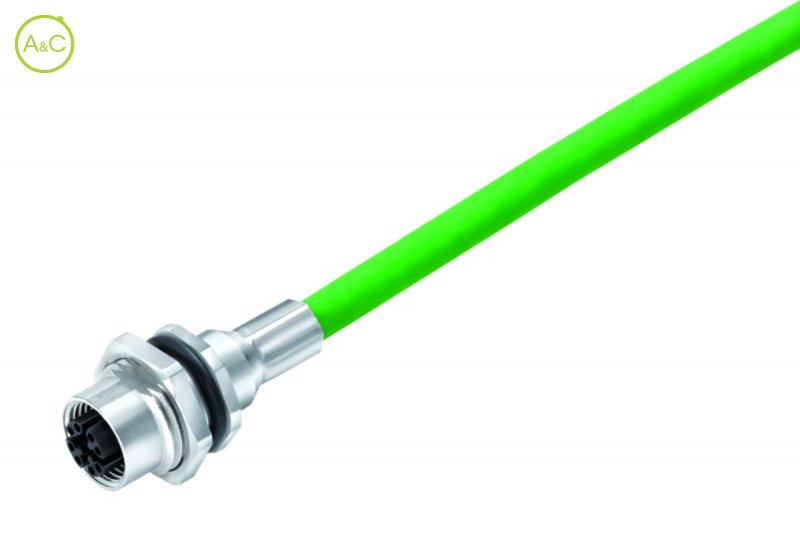

Female panel mount connector

  • Front fastened with ethernet cable
  • UL-approval

Number Of Poles

  • 8
Article Number 70 3784 706 08
Connector Diameter 21 mm
Number Of Contacts 8 contacts
Connector Locking System Screw (M12-X)
Termination Cable
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 50 V AC 60 V DC
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 0.5 A
Max. Contact Resistance 10 mΩ
Material Of Contact CuSn (Bronze)
Plating Au (Gold)
Material Of Insert PA
Single Lead Structure 7x0,16
Cable Sheath Ø 6.2 mm
Bending Radius Cable Fixed ≥25 mm
Bending Radius Cable Movable ≥50 mm
Material Housing Of Cable PUR Green
Product sheet Download product sheet
Eigenschappen verschillen tussen varianten en subvarianten
