Number Of Poles
- 4
- 5
Article Number | 76 0232 0011 00004 0200 | 76 0232 0011 00104 0200 | 76 0232 0011 00204 0200 | 76 0232 0011 00304 0200 | 76 0232 0011 00404 0200 | 76 0232 0011 00504 0200 | 76 0232 0011 00604 0200 |
Old Article Number | 09 3432 700 04 | ||||||

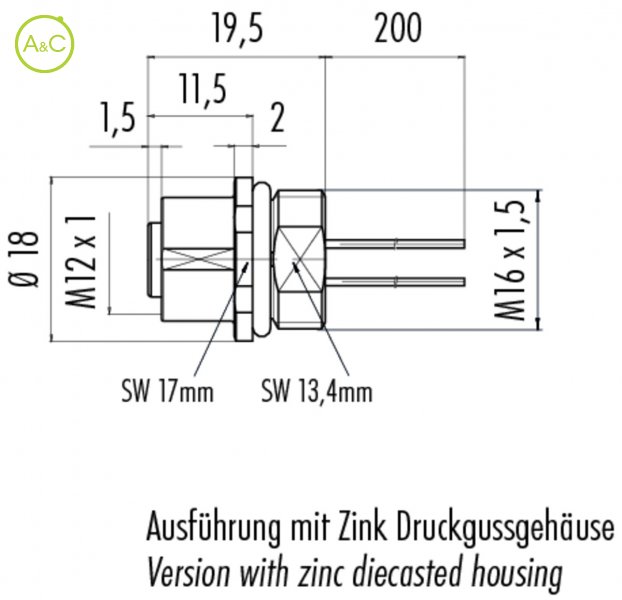

Connector Diameter | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
Number Of Contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts | 4 contacts |
Connector Locking System | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) | Screw (M12-A) |
Termination | Single wires | Single wires | Single wires | Single wires | Single wires | Single wires | Single wires |
Wire Section | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² | 0.25 mm² |
Protection Degree | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Mating Cycles | >50 times | >50 times | >50 times | >50 times | >50 times | >50 times | >50 times |
Upper Temperature | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C | +85 °C |
Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
Rated Voltage | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Rated Impuls Voltage | 2500 V | 2500 V | 2500 V | 2500 V | 2500 V | 2500 V | 2500 V |
Pollution Degree | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Overvoltage Categorie | II | II | II | II | II | II | II |
Material Group | II | II | II | II | II | II | II |
Rated Current (40°) | 4 A | 4 A | 4 A | 4 A | 4 A | 4 A | 4 A |
Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) |
Plating | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) | Au (Gold) |
Material Of Insert | PA | PA | PA | PA | PA | PA | PA |
Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
Fixing Thread | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 | M16 x 1,5 |
Product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
