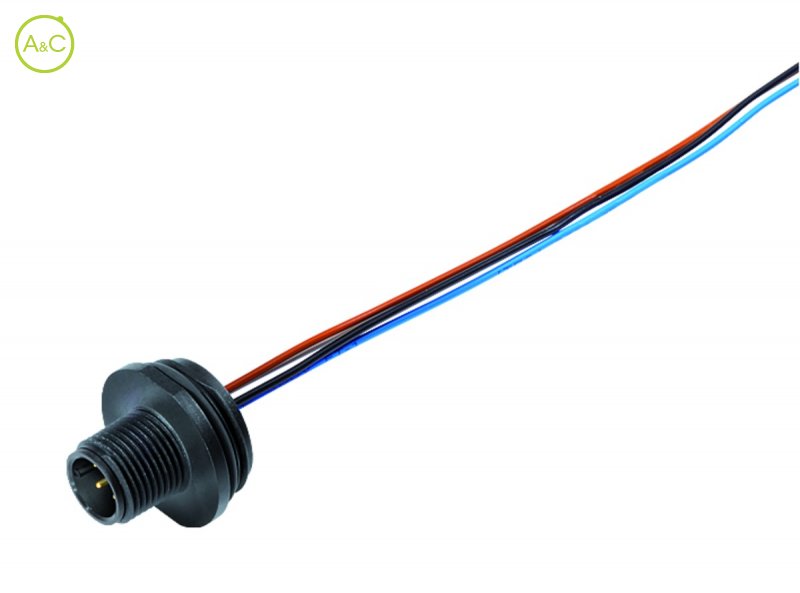

Male panel mount connector

With single wires
AWG 24, M20 x 1,5

76-4631-0011-00004-0200

76-4631-0011-00004-0200

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

4
5
8
12

Article Number	76 4631 0011 00004 0200

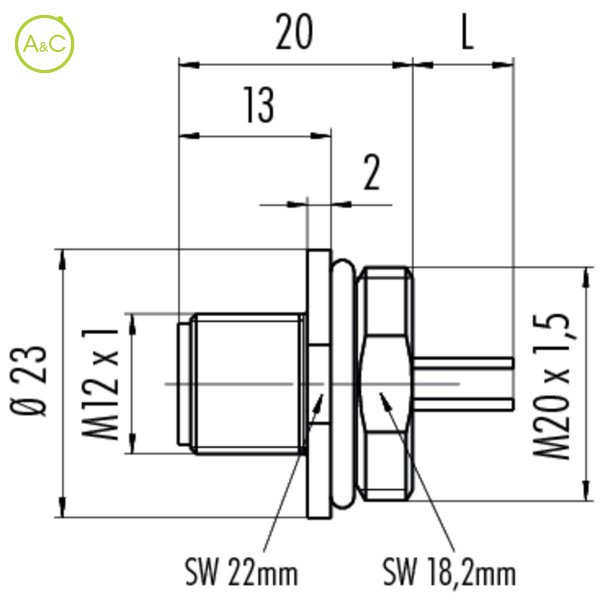

Connector Diameter	23 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M20 x 1,5
Wire Gauge	24 AWG
Product sheet	Download product sheet

Article Number	76 4631 0011 00005 0200
Connector Diameter	23 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M20 x 1,5
Wire Gauge	24 AWG
Product sheet	Download product sheet

Article Number	76 4631 0011 00008 0200
Connector Diameter	23 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.25 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M20 x 1,5
Wire Gauge	24 AWG
Product sheet	Download product sheet

Article Number	76 4631 0111 00012 0200
Connector Diameter	23 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Strands
Wire Section	0.14 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	1.5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Fixing Thread	M20 x 1,5
Wire Gauge	26 AWG
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
