Number Of Poles
- 12

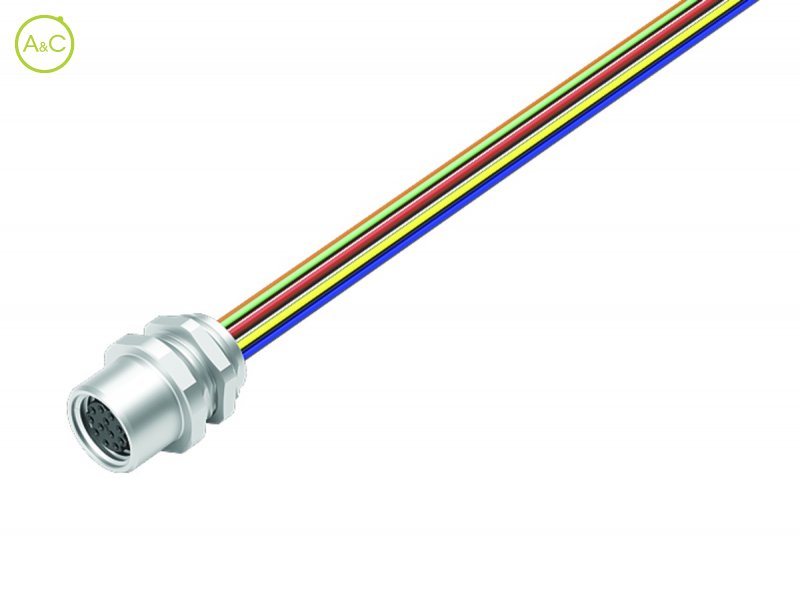

Article Number | 76 6218 1118 00012 0200 |
Connector Diameter | 12.6 mm |
Number Of Contacts | 12 contacts |
Connector Locking System | Screw (M8) |
Termination | Single wires |
Wire Section | 0.09 mm² |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 30 |
Rated Impuls Voltage | 500 V |
Pollution Degree | 2 |
Overvoltage Categorie | II |
Material Group | I |
Rated Current (40°) | 1 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Housing | Zinc die-cast nickel plated |
Wire Gauge | 28 AWG |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
