Provertha
Number Of Poles
- 9
- 15

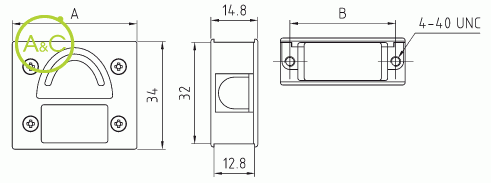

| Article Number | 77 09 DC 001 |
| Number Of Contacts | 9 |
| Upper Temperature | +90 °C |
| Lower Temperature | -20 °C |
| Material | zn alloy |
| Extra Information | Can be used as BUS hood system Easy/Quick assembly |
| Locking Style | Slide lock Clip lock |
| Cable Fixing | Cable calmp external (al) Crimp flange |
| Cable Outputs | 2 D-Sub outputs 2 side cable outputs |
| Cable Diameter External Cable Clamp | 4-14 |
| Cable Diameter Crimping Flange | 2,7-8,7 |
| Material/surface Locking Screws Diecast | ST tin plated |
| Material/surface Cover Screws | ST Zinc plated |
