Binder
Number Of Poles
- 3
- 4
- 5
- 8
| Article Number | 77 3405 0000 20003 0200 | 77 3405 0000 50003 0200 | 77 3405 0000 20003 0500 |
| Old Article Number | 79 3405 42 03 | 79 3405 52 03 | 79 3405 45 03 |

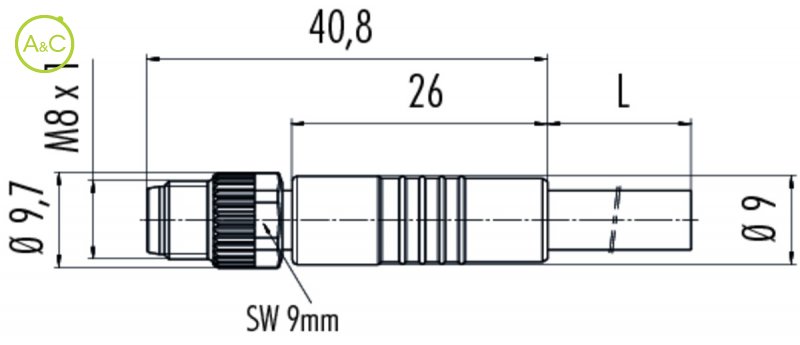

| Connector Diameter | 9.7 mm | 9.7 mm | 9.7 mm |
| Number Of Contacts | 3 contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M8) | Screw (M8) | Screw (M8) |
| Termination | Crimp, moulded | Crimp, moulded | Crimp, moulded |
| Wire Section | 0.34 mm² | 0.34 mm² | 0.34 mm² |
| Cable Length | 2 mm | 2 mm | 5 mm |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times | >100 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| Rated Voltage | 60 | 60 | 60 |
| Rated Impuls Voltage | 1500 V | 1500 V | 1500 V |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II |
| Material Group | II | II | II |
| Rated Current (40°) | 4 A | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR | PUR |
| Material Of Housing | PUR | PUR | PUR |
| Cable Diameter | 4,5 mm | 4,3 mm | 4,5 mm |
| Cable Jacket Material | PVC | PUR | PVC |
| Insulation Wire | PVC | PP | PVC |
| Wire Gauge | 22 AWG | 22 AWG | 22 AWG |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
